LGMG RTH100 2025 – Muffler installation lg24-xyq-01 – A2401-4190711492
Category: 2025 > RTH100 > R1000Y3A0A224

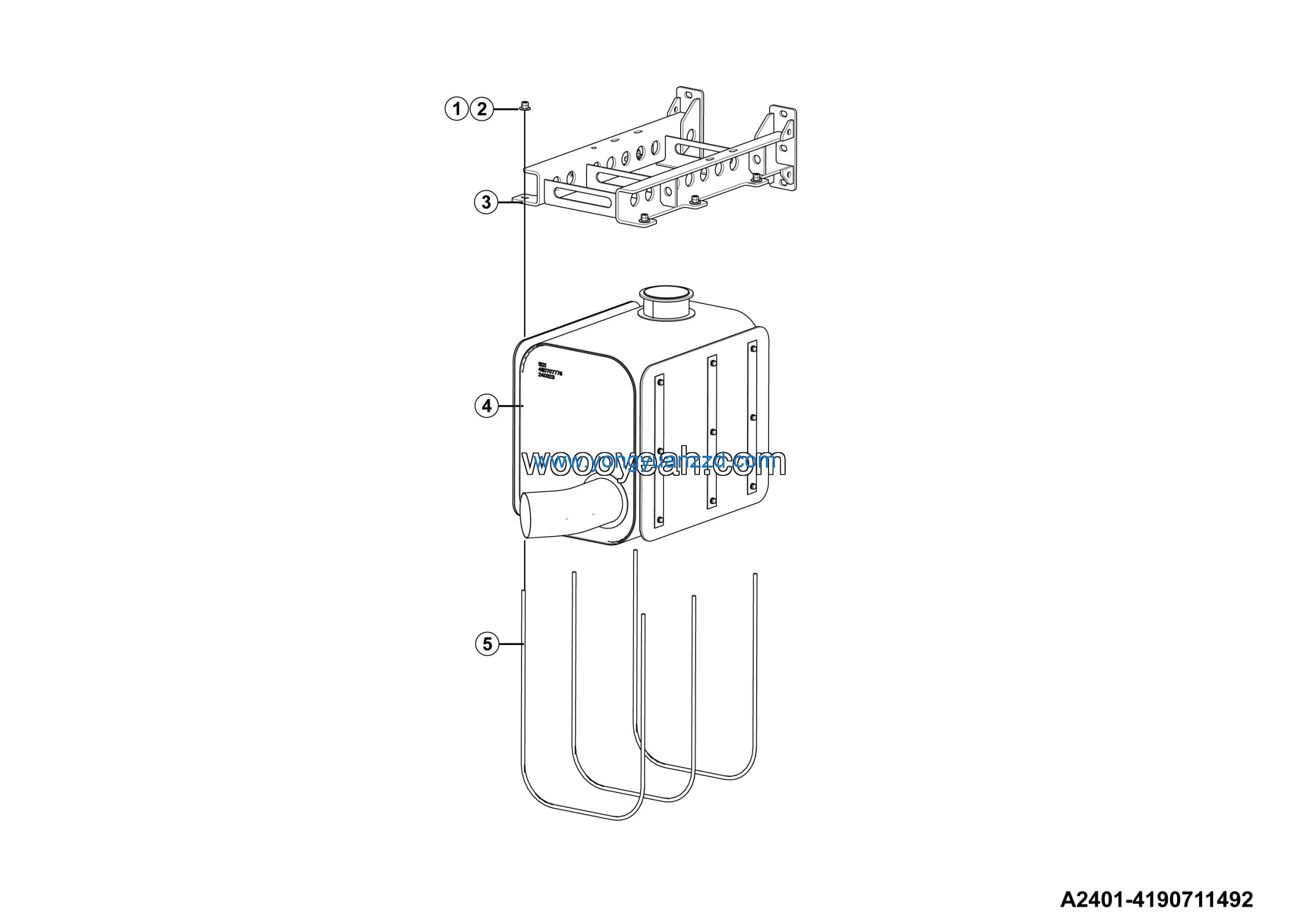

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6170-M10flZnyc-8-480 | 4013010289 | 12 |
| 2 | Washer GB96.1-10flZnyc-300HV-480 | 4015010278 | 6 |
| 3 | Muffler bracket lg24-xyq-01 | 4190711494 | 1 |
| 4 | Muffler assy lg24-xyq-01 | 4190711493 | 1 |
| 5 | U-shaped hold-down rod lg24-xyq-01 | 4190711495 | 3 |
