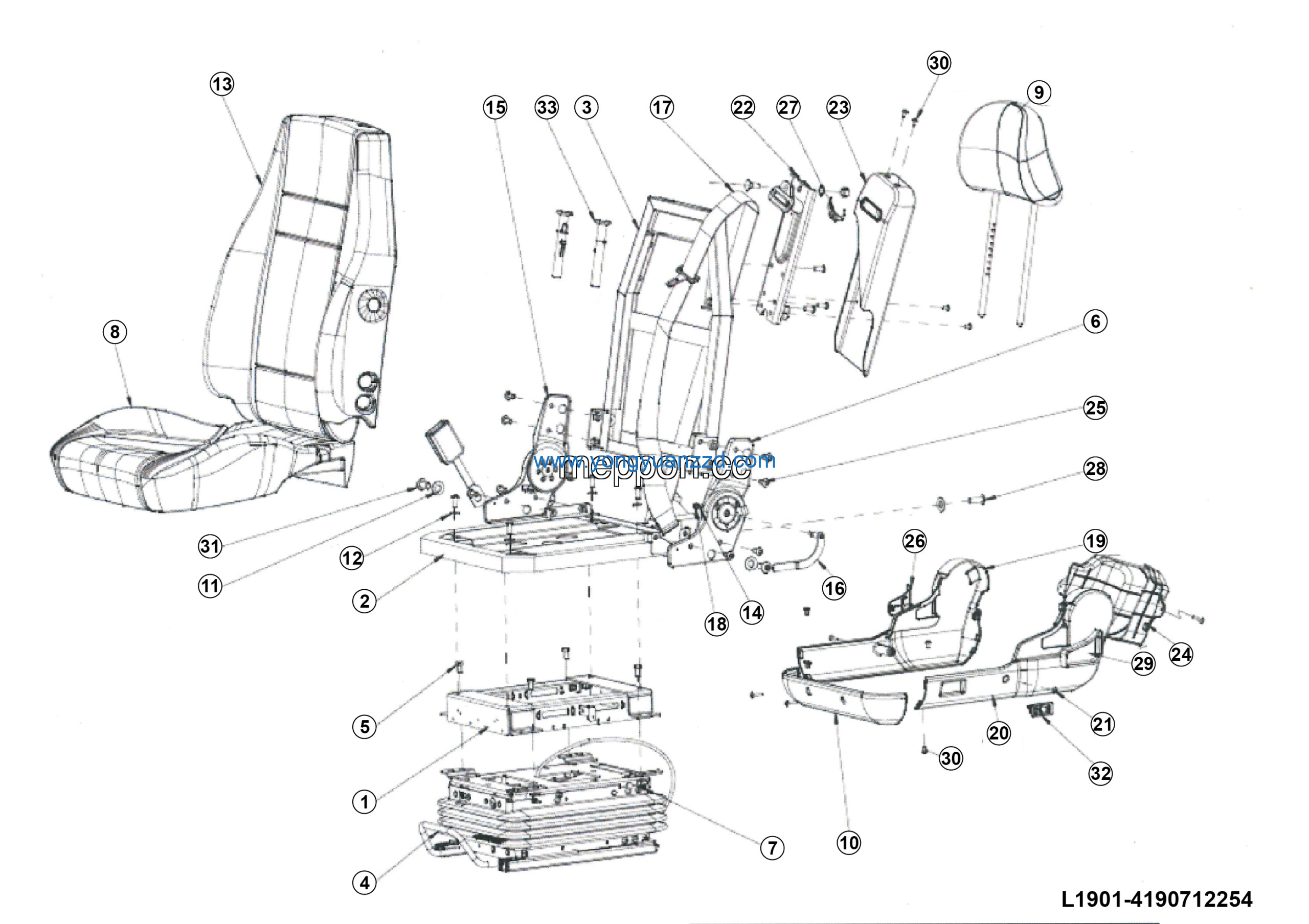

LGMG RTH136 2025 – Seat assy sga24419 (10238) – L1901-4190712254
Category: 2025 > RTH136 > R1362Y3A0A017
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Front trim cover | 4190710903003 | 1 |
| 2 | SEAT ASSEMBLY | 2719010127006 | 8 |
| 3 | Washer 06S0133 | 4190002268046 | 4 |
| 4 | Back assembly SGA22382 | 4190708195009 | 1 |
| 5 | Washer 06S0176 | 4190002268044 | 1 |
| 6 | Adjusting mechanism assy SGA11190（RH） | 4190002268005 | 1 |
| 7 | LH adjusting handle assy SGA11163 | 4190002268008 | 1 |
| 8 | Seat belt assembly SGA10138 | 4190708195011 | 1 |
| 9 | Nut 07S0124 | 4190002268042 | 1 |
| 10 | RH decorative cover SG12101 | 4190002268018 | 1 |
| 11 | Connection frame assy | 4190710903001 | 1 |
| 12 | LH decorative cover SG12098 | 4190002268017 | 1 |
| 13 | Screw SG11423 | 4190002268030 | 6 |
| 14 | Seat belt bracket SG11402 | 4190708195012 | 1 |
| 15 | Seat belt cover SG11398 | 4190708195013 | 1 |
| 16 | Seat belt rear cover SG11397 | 4190708195014 | 1 |
| 17 | Bolt 32S0110 | 4190002268041 | 8 |
| 18 | Protection cover | 4190710903006 | 1 |
| 19 | Protection ring SG11223 | 4190708195015 | 1 |
| 20 | Bolt SG10156 | 4190708195016 | 1 |
| 21 | Plastic handle assy SG10137 | 4190703794002 | 1 |
| 22 | Block iron assembly SGA22363 | 4190708195002 | 1 |
| 23 | Screw SG09202 | 4190002268031 | 8 |
| 24 | Bolt 63S0145 | 4190002268037 | 2 |
| 25 | Air switch S20329 | 4190002268021 | 1 |
| 26 | Headrest cannula assy SA20872 | 4190002268032 | 1 |
| 27 | Back iron table assembly SGA22362 | 4190708195003 | 1 |
| 28 | Air suspension #30 | 4190712254001 | 1 |
| 29 | SEAT ASSEMBLY | 2719010127007 | 4 |
| 30 | Left adjustment mechanism assembly SGA18062 | 4190708195005 | 1 |
| 31 | Lock nut m8×1.25 | 4190710903007 | 4 |
| 32 | Block assembly SGA22383 | 4190708195007 | 1 |
| 33 | Headrest assy SGA20135 | 4190710615004 | 1 |
