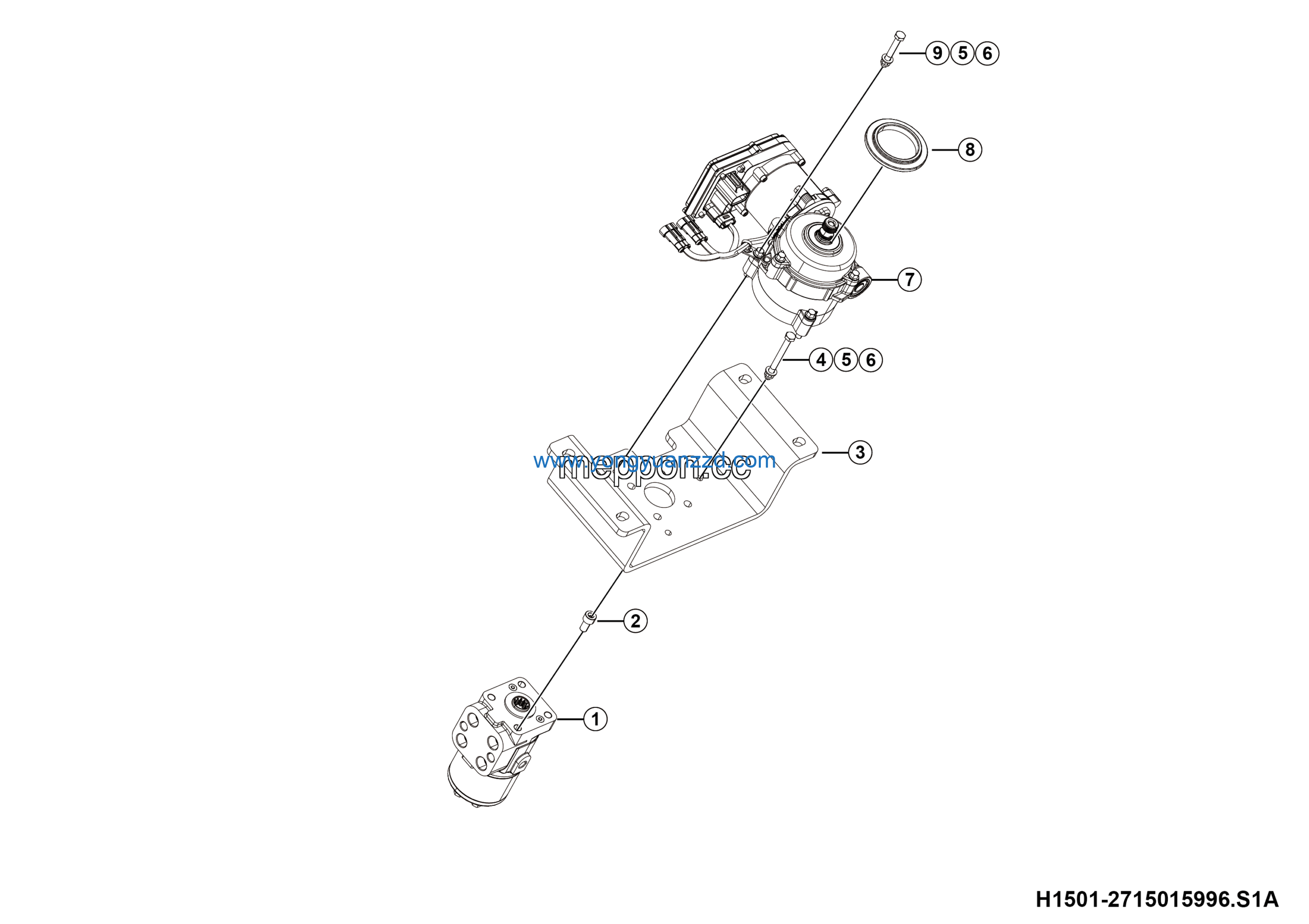

LGMG RTH136 2025 – Steering motor assy – H1501-2715015996.S1A
Category: 2025 > RTH136 > R1362Y3A0A017
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Steering gear assembly | 27150121471 | 1 |
| 2 | Screw GB70.1-M10*20flZnyc-10.9-480 | 4014010385 | 4 |
| 3 | Bracket 380*170*114 | 27150159082 | 1 |
| 4 | Bolt GB5782-M8*85flZnyc-8.8-480 | 4011010968 | 1 |
| 5 | Washer GB97.1-8flZnyc-300HV-480 | 4015010280 | 3 |
| 6 | Nut GB6185.1-M8flZnyc-8-480 | 4013010314 | 3 |
| 7 | Elec servo steering device LG15-ZXZZ-02 | 4120709931 | 1 |
| 8 | Block | 27150122101 | 1 |
| 9 | Bolt GB5782-M8*60flZnyc-8.8-480 | 4011010989 | 2 |
