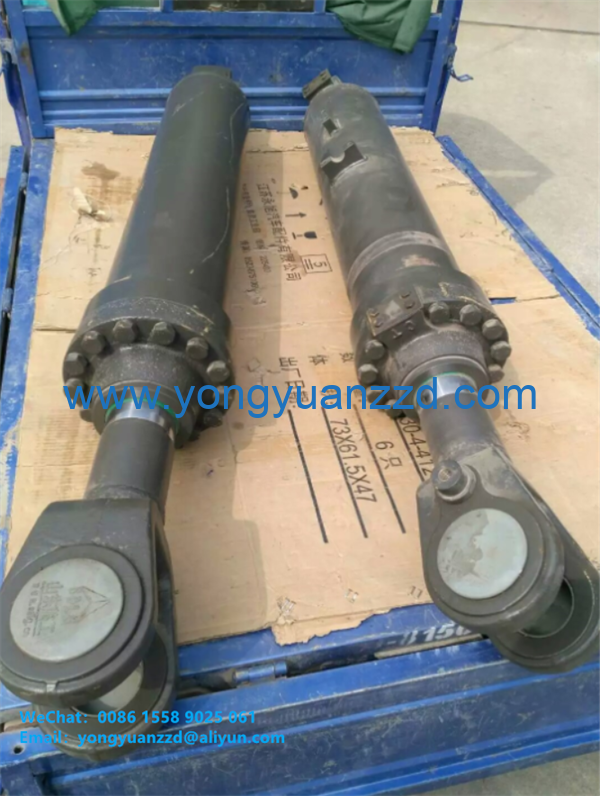

SDLG L955F BOOM CYLINDER 4120006611 动臂油缸HSGF-160*90*805-1355A
SDLG L955F (4120015737 29130200551 29130200571)
SDLG L955F SCREW 4011001288 螺栓GB16674.1-M10*50flZnyc-8.8-480
SDLG L955F SCREW 4011001298 螺栓GB16674.1-M10*55flZnyc-8.8-480
SDLG L955F Pipe 29130025921 左小腔钢管总成
SDLG L955F O-RING 4030000026 O形圈GB3452.1-32.5*3.55G GB3452.1-32.5*3.55G
SDLG L955F SCREW 4011001300 螺栓GB16674.1-M10*30flZnyc-8.8-480
SDLG L955F PIPE 29130008152 举升下降钢管
SDLG L955F O-RING 4030000029 O形圈GB3452.1-37.5*3.55G GB3452.1-37.5*3.55G
SDLG L955F -4041000878
SDLG L955F BRACKET 29130011991 左支架
SDLG L955F SCREW 4011001299 螺栓GB16674.1-M10*25flZnyc-8.8-480
SDLG L955F Hose assembly 4041002661 软管LGB107-010130
SDLG L955F FLANGE HALF 4041000043 分体法兰LGB117-310490
SDLG L955F PIPE 29130021091 左大腔钢管总成
SDLG L955F PIPE 29130021131 右大腔钢管总成
SDLG L955F Pipe 29130025911 右小腔钢管总成
SDLG L955F WASHER 4015000433 垫圈GB97.1-10flZnyc-300HV-480
SDLG L955F U-BOLT 4041001017 U形螺栓LGB159-13040
SDLG L955F BRACKET 4041001018 底板LGB160-3040
SDLG L955F NUT 4013000370 螺母GB6170-M10flZnyc-8-480
SDLG L955F SCREW 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480
SDLG L955F PLATE 29130021191 固定板
SDLG L955F PIPE 29130008201 动臂联小腔右钢管
SDLG L955F PIPE 29130008181 动臂联大腔右钢管
SDLG L955F BRACKET 29130012011 右支架
SDLG L955F PIPE 29130008221 动臂联大腔左钢管
SDLG L955F SCREW 4011001249 螺栓GB5783-M10*30flZnyc-8.8-480
SDLG L955F CLAMP 29130021161 管夹
SDLG L955F CLAMP 29130021171 管夹
SDLG L955F PIPE 29130008241 动臂联小腔左钢管
SDLG L955F NUT 4013000373 螺母GB6170-M8flZnyc-8-480
SDLG L955F WASHER 4015000430 垫圈GB97.1-8flZnyc-300HV-480
SDLG L955F SCREW 4011001296 螺栓GB16674.1-M8*20flZnyc-8.8-480
SDLG L955F CLAMP 29130010371 管夹
SDLG L955F RUBBER SLEEVE 4041000869 缓冲套LGB123-0740
SDLG L955F Cylinder tube 4120006611001 缸筒总成24A138700
SDLG L955F piston rod 4120006628002 活塞杆总成24A113870
SDLG L955F Cover 4120006611002 缸盖24C101110
SDLG L955F BUSHING 4120006000005 衬套24S290401 9040
SDLG L955F RETAINING RING 4120005980008 钢丝挡圈-孔用24C090220
SDLG L955F Sealing ring 4120005999004 密封件-缓冲24H009004
SDLG L955F Sealing ring 4120005999005 密封件-活塞杆24F209003
SDLG L955F Retaining ring 4120005999006 挡圈-U形圈24E009025
SDLG L955F Sealing ring 4120005999007 密封件-防尘24D209001
SDLG L955F RETAINING RING 4120005980009 钢丝挡圈-孔用24C090240
SDLG L955F O-ring 4120006611003 O形圈24K11500A
SDLG L955F O-ring 4120006611004 挡圈-O形圈24M11600D
SDLG L955F O-ring 4120006611005 O形圈24K315761
SDLG L955F Piston 4120006611006 活塞24C102080
SDLG L955F Sealing ring 4120006611007 密封件-活塞24P216002
SDLG L955F O-ring 4120005999013 O形圈24K10900A
SDLG L955F O-ring 4120005999014 挡圈-O形圈24M30950A
SDLG L955F Sealing ring 4120006611008 支承环24G216051
SDLG L955F NUT 4120005980011 活塞背母24C103050
SDLG L955F BALL 4090000168 钢球GB308-5-GCr6
SDLG L955F SCREW 4120005685008 螺钉-内六角凹端紧定24T908161 M8*16L
SDLG L955F BUSHING 4120006628006 轴套24C116150
SDLG L955F Sealing ring 4120006611009 销边防尘24R308540
SDLG L955F Screw 4120006611010 螺钉-内六角圆柱头24T516755
SDLG L955F ANCHORAGE 4120005685012 固定座24C003020 M16
SDLG L955F Sealing ring kit 4120006611011 密封件包24A103320S
