SDLG L955F Pipe 29120030871 回油钢管
SDLG L955F O-RING 4030000130 O形圈GB3452.1-47.5*3.55G GB3452.1-47.5*3.55G
SDLG L955F Bolt 4011001375 螺栓GB16674.1-M12*30flZnyc-8.8-480
SDLG L955F Hose assembly 29120030891 多路阀回油胶管
SDLG L955F FLANGE HALF 4041000011 分体法兰LGB117-314650
SDLG L955F SCREW 4011001510 螺栓GB16674.1-M12*35flZnyc-8.8-480
SDLG L955F Bracket 29120030901 支架
SDLG L955F SCREW 4011001299 螺栓GB16674.1-M10*25flZnyc-8.8-480
SDLG L955F Clamp 29120030911 橡胶管夹
SDLG L955F Plate 29120032701 U型板固定板
SDLG L955F Bolt 4011001393 螺栓GB5782-M8*100flZnyc-8.8-480
SDLG L955F NUT 4013000373 螺母GB6170-M8flZnyc-8-480
SDLG L955F WASHER 4015000430 垫圈GB97.1-8flZnyc-300HV-480
SDLG L955F PLUG 4041000774 螺塞LGB135-01422
SDLG L955F O-RING 4041000767 O形圈LGB168-11124
SDLG L955F Screw 4011001558 螺栓GB5782-M12*175flZnyc-8.8-480
SDLG L955F WASHER 4015000428 垫圈GB97.1-12flZnyc-300HV-480
SDLG L955F NUT 4013000368 螺母GB6170-M12flZnyc-8-480
SDLG L955F PIPE 29120009161 多路阀回油钢管
SDLG L955F O-RING 4030000031 O形圈GB3452.1-42.5*3.55G GB3452.1-42.5*3.55G
SDLG L955F Screw 4011001560 螺栓GB16674.1-M10*65flZnyc-8.8-480
SDLG L955F SCREW 4011001465 螺栓GB5782-M12*145flZnyc-8.8-480

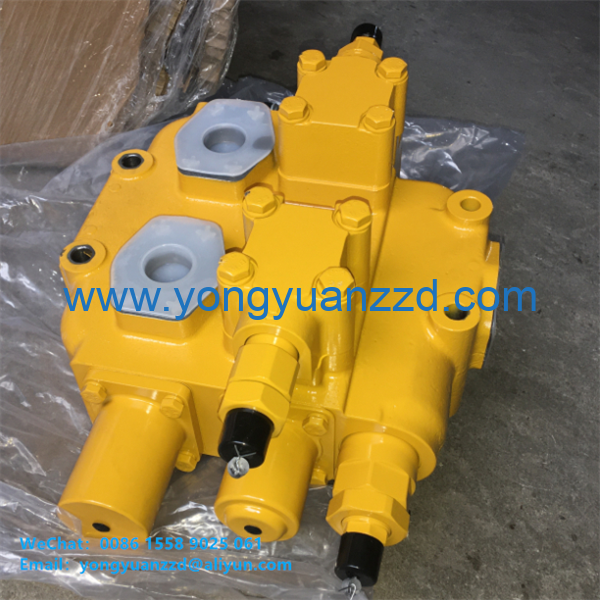

SDLG L955F Control valve 4120007615 多路阀DFS-32-18.5
SDLG L955F ANCHOR PLATE 29120009141 多路阀固定板
SDLG L955F Protecting plate 29120009112 护板
SDLG L955F SCREW 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480
SDLG L955F Screw 4011001561 螺栓GB5782-M12*135flZnyc-8.8-480
SDLG L955F VALVE BLOCK 29120019061 多路阀进油块
SDLG L955F O-RING 4030000029 O形圈GB3452.1-37.5*3.55G GB3452.1-37.5*3.55G
SDLG L955F -4041000878
SDLG L955F Screw 4011001563 螺栓GB16674.1-M10*85flZnyc-8.8-480
SDLG L955F Hose assembly 29120030831 多路阀进油胶管
SDLG L955F FLANGE HALF 4041000056 分体法兰LGB117-312550
SDLG L955F SCREW 4011001300 螺栓GB16674.1-M10*30flZnyc-8.8-480
SDLG L955F Flexible shaft 29120030691 操纵软轴
SDLG L955F CONTROL MECHANISM 4120003865 操纵机构 LG12-953CZJG03
SDLG L955F SPLIT PIN 4016000035 开口销GB91-4*20EpZn-Q235A GB91-4*20EpZn-Q235A
SDLG L955F PIN 4120002279101 圆肩销DF-32-01
SDLG L955F WASHER 4015000320 垫圈GB97.2-12-300HV
SDLG L955F VALVE ROD 4120002314105 动臂阀杆GDF-32Ⅲ-03c1
SDLG L955F -4120001052008
SDLG L955F PLATE 4120002279107 压板GDF-32-04
SDLG L955F SEALING RING 4120002432407 防尘圈CK28
SDLG L955F WASHER 4120002432405 垫圈GDF-32-02
SDLG L955F O-ring 4120001052010 O形圈27.7×3.55G
SDLG L955F O-RING 4030000610 O形圈GB3452.1-11.8*1.80G
SDLG L955F PLUG 4120005199025 测压口堵头GDF-32-18
SDLG L955F O-RING 4030000011 O形圈GB1235-20*2.4 GB1235-20*2.4
SDLG L955F PLUG 4120001054222 螺塞D32-3
SDLG L955F O-RING 4030000757 O形圈GB3452.1-31.5*3.55G
SDLG L955F Valve cover 4120005199007 阀盖GDF-32-05
SDLG L955F valve spring 4120005199008 单向阀弹簧GDF-32-07
SDLG L955F DIRECTION VALVE 4120005199009 单向阀GDF-32-08
SDLG L955F O-RING 4030000760 O形圈GB1235-50*3.1
SDLG L955F PLUG 4120005199028 螺塞DF-32-20A
SDLG L955F Valve body 4120002278004 阀体GDF-32-01B1
SDLG L955F PLATE 4120002279114 垫板GDF-32-09A
SDLG L955F SPRING SEAT 4120002432421 弹簧座GDF-32-15
SDLG L955F -4120001053004
SDLG L955F Spring 4120002432420 弹簧407428
SDLG L955F BALL 4090000162 钢球GB308-11.112-GCr15
SDLG L955F SEALING 4120002432427 密封垫GDF-32-17
SDLG L955F SPRING WASHER 4015000036 垫圈GB93-8-65Mn GB93-8-65Mn
SDLG L955F SCREW 4011000708 螺栓GB21-M8×20
SDLG L955F VALVE COVER 4120002432428 端盖GDF-32-14B
SDLG L955F rubber plug 4120002279121 端盖橡胶塞GDF-32-20
SDLG L955F rubber plug 4120002279119 端盖橡胶塞GDF-32-19
SDLG L955F VALVE COVER 4120002432429 端盖GDF-32-12B
SDLG L955F SCREW 4011001194 螺栓GB21-M8*15EpZn-8.8
SDLG L955F SPRING SEAT 4120002279118 弹簧压座GDF-32-11
SDLG L955F SPRING SEAT 4120002279116 弹簧座GDF-32-10a
SDLG L955F -4120001053007
SDLG L955F SPRING 4120002432425 回位弹簧GDF-32-16
SDLG L955F Valve 4120007618002 安全阀XDY32G02-00A-18.5
SDLG L955F VALVE 4120002059003 高压过载阀D32A.1-00b-20
SDLG L955F VALVE 4120002314106 过载阀阀体ZL50106C-01A
SDLG L955F SPRING WASHER 4015000025 垫圈GB93-10-65Mn GB93-10-65Mn
SDLG L955F BOLT 4011000050 螺栓GB5782-M10*60EpZn-8.8 GB5782-M10*60EpZn-8.8
SDLG L955F O-RING 4030000013 O形圈GB1235-32*3.1 GB1235-32*3.1
SDLG L955F VALVE 4120002432431 过载补油阀阀体 ZL50106C1-01
SDLG L955F O-RING 4030000981 O形圈GB1235-28*3.1
SDLG L955F VALVE 4120002038161 低压过载阀XDYB20G01-00E-12
SDLG L955F Screw 4120005747003 螺钉GB67-M6*11
SDLG L955F VALVE ROD 4120002432432 转斗阀杆GDF-32-06e
