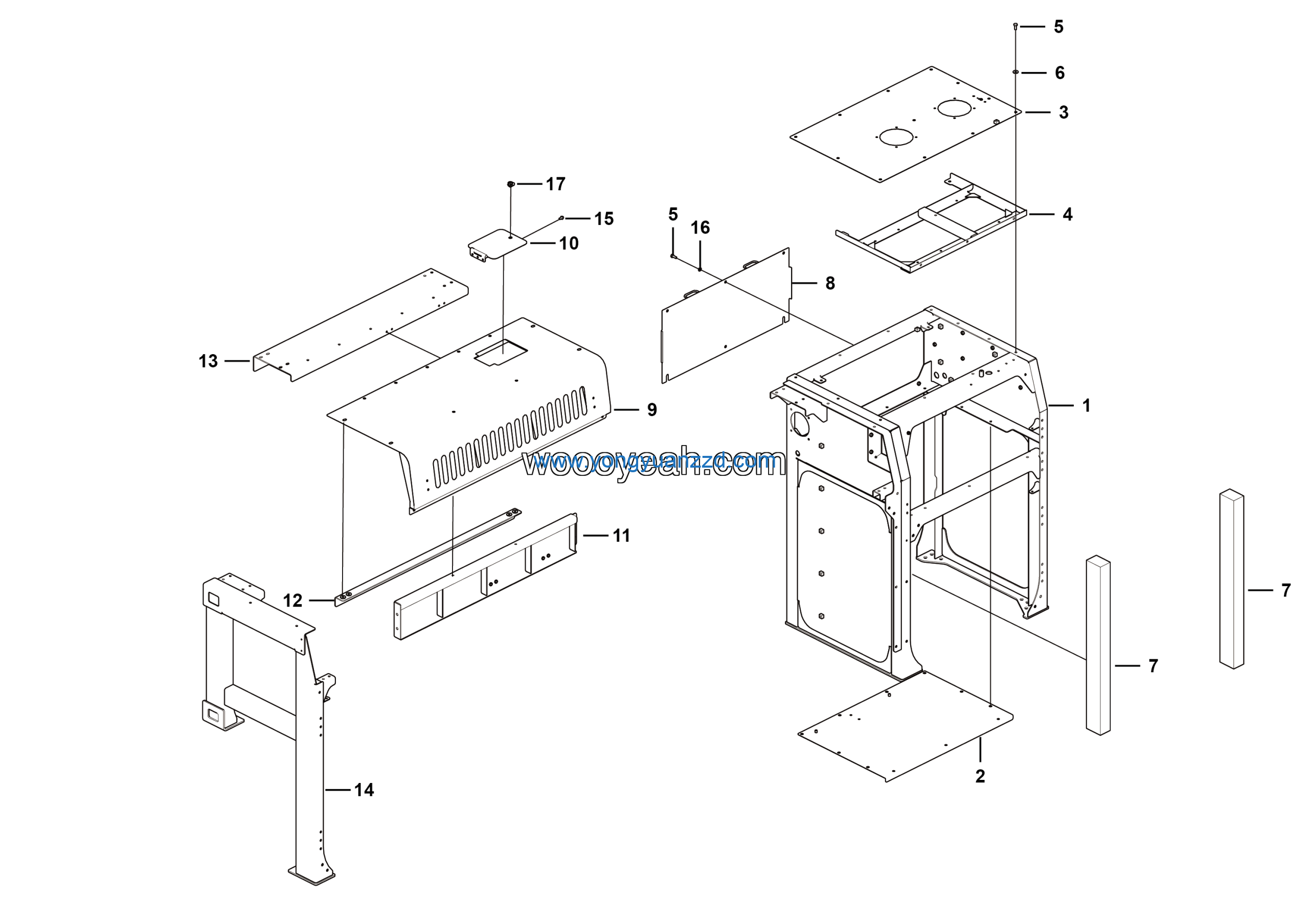

LGMG ？？2？？？？？？？？？？？o Hydrualic Excavator 2024 – Right frame assy – M3301-2633011582.S1A
Category: 2024 > ？？2？？？？？？？？？？？o Hydrualic Excavator > ME106 > E10600P3A004
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Door | 26330000993 | 1 |
| 2 | Plate | 26330110942 | 1 |
| 3 | Bracket | 26330003513 | 1 |
| 4 | Bracket | 26330110962 | 1 |
| 5 | Bracket | 26330002583 | 1 |
| 6 | Bolt GB16674.1-M10*20flZnyc-10.9-480 | 4011011580 | 2 |
| 7 | Washer GB97.1-12flZnyc-300HV-480 | 4015010340 | 3 |
| 8 | Lock | 4110703704 | 1 |
| 9 | Framework | 26330115832 | 1 |
| 10 | Plate | 26330115882 | 1 |
| 11 | Cover | 26330004873 | 1 |
| 12 | Bracket | 26330003403 | 1 |
| 13 | Bolt GB5783-M12*30flZnyc-10.9-480 | 4011010866 | 60 |
| 14 | Washer 12.5*32*4.5 | 4190707653 | 57 |
| 15 | Sponge | 26030101191 | 2 |
| 16 | Cover plate | 26330115862 | 1 |
| 17 | Hood | 26330003954 | 1 |
