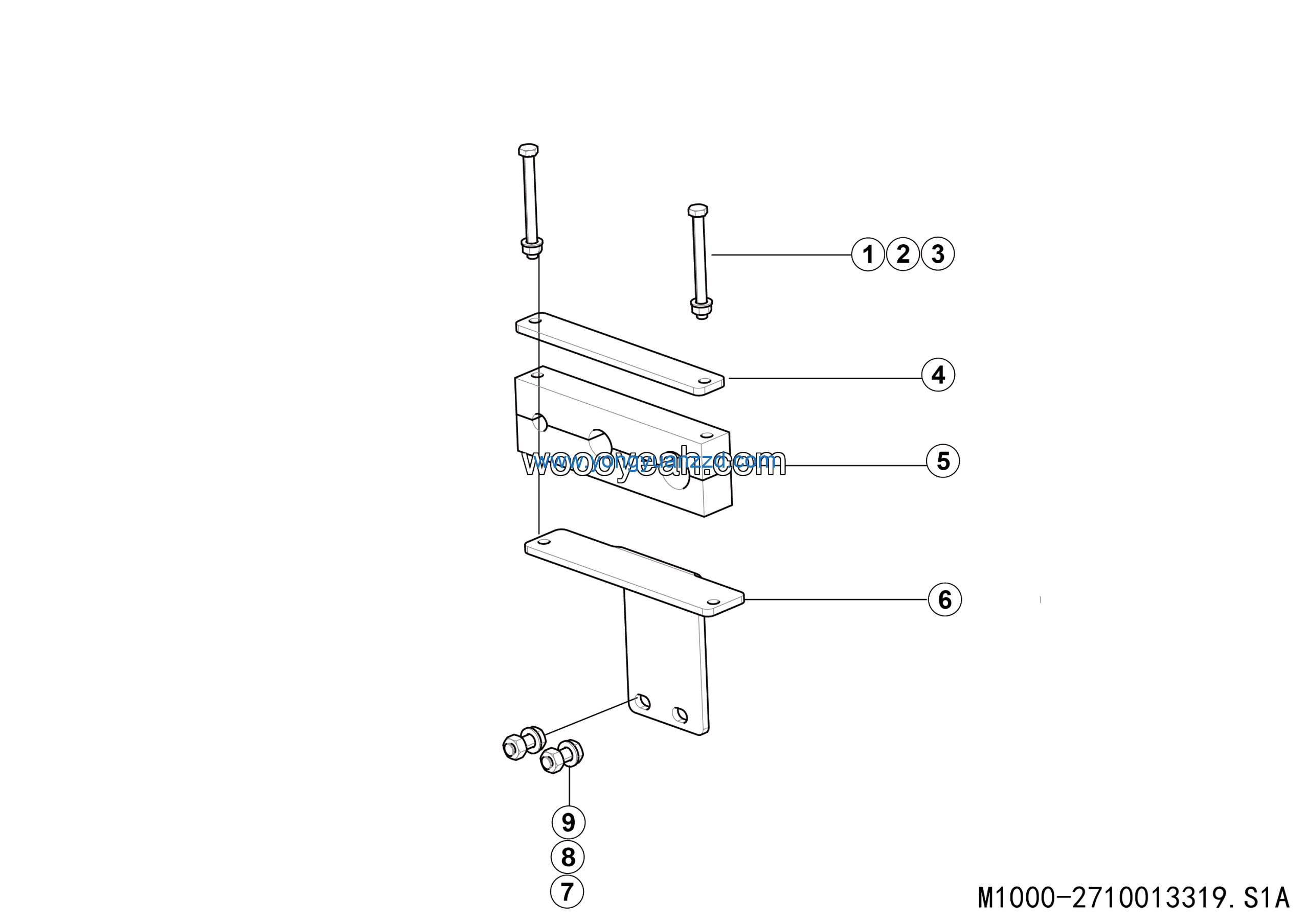

LGMG AT40 2025 – Bracket assy 08 – M1000-2710013319.S1A
Category: 2025 > AT40 > A0400W3M0A108
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5782-M8*85EpZn-8.8 | 4011000303 | 2 |
| 2 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 3 | Nut GB6170-M10EpZn-8 | 4013000007 | 2 |
| 4 | Plate 200*30*6 | 27100133181 | 1 |
| 5 | Three-hole pipe clamp 16-12.5 -8 | 27100133161 | 2 |
| 6 | Bracket 200*110*60/6 | 27100133201 | 1 |
| 7 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 2 |
| 8 | Nut GB6170-M8EpZn-8 | 4013000033 | 2 |
| 9 | Washer GB97.1-10EpZn-300HV | 4015000162 | 2 |
