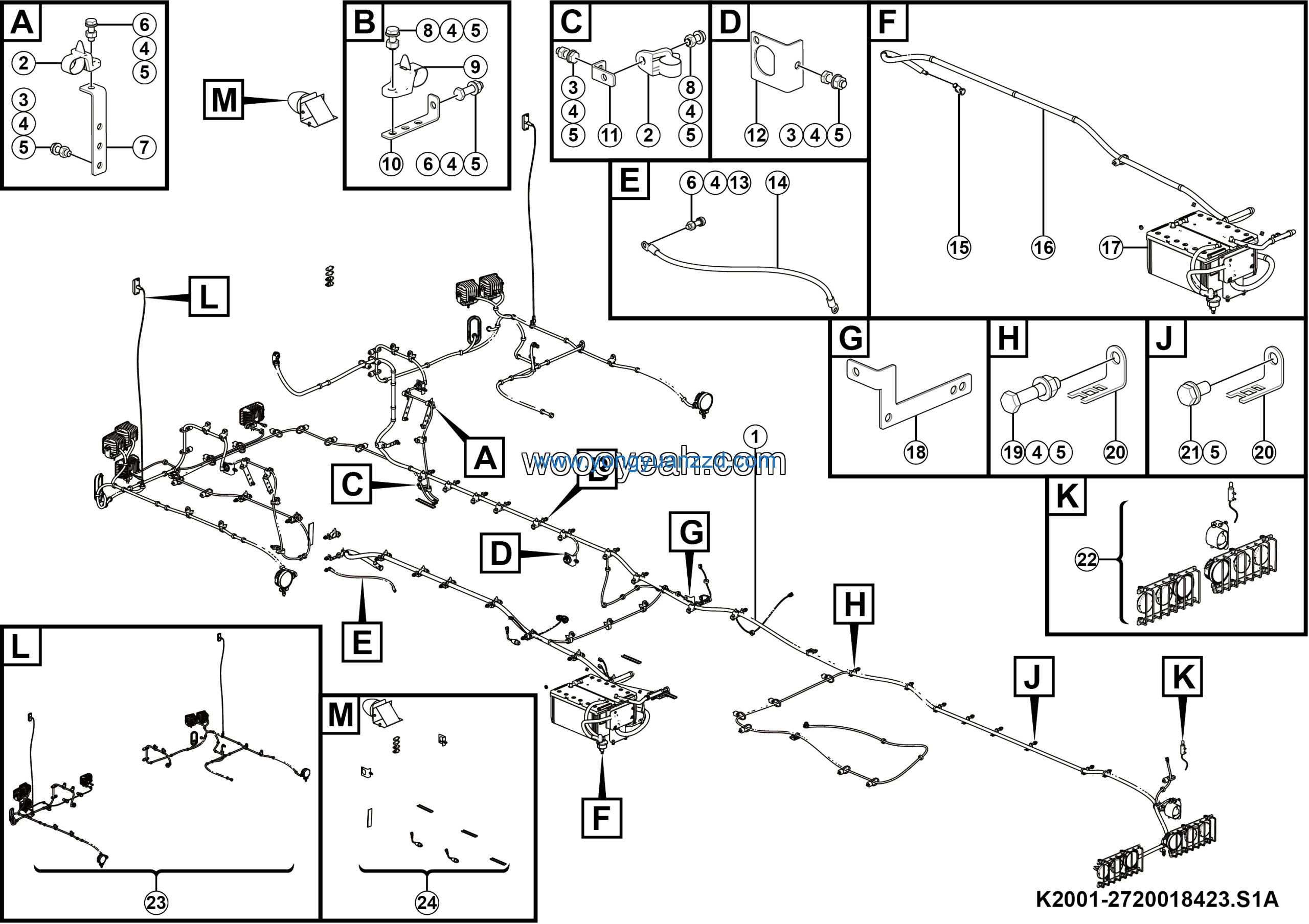

LGMG CMT106 2025 – Chassis elec sys – K2001-2720018423.S1A
Category: 2025 > CMT106 > C1060W3E0A129
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Holder | 27200147051 | 24 |
| 2 | Holder | 27200142321 | 2 |
| 3 | Itt plate | 27200107441 | 1 |
| 4 | Washer GB862.2-10-65Mn | 4015010586 | 2 |
| 5 | Wire p70*550 | 27200111461 | 1 |
| 6 | Red battery cable sheath | 26370002451 | 1 |
| 7 | Battery wire p70*3900 | 27200106551 | 1 |
| 8 | Electrical module | 27200107641 | 1 |
| 9 | Plate | 27200153202 | 1 |
| 10 | Bolt GB5782-M10*50EpZn-8.8 | 4011000048 | 6 |
| 11 | Frame harness | 27200184221 | 1 |
| 12 | 90 ° dip plastic bracket 47.4 * 33.4 * 2.3 | 27340119441 | 13 |
| 13 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 2 |
| 14 | System | 27200147141 | 1 |
| 15 | Covering elec module | 27200186281 | 1 |
| 16 | PLATE | 27200110043 | 1 |
| 17 | Cable tie 14400342 | 4130703098 | 10 |
| 18 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 20 |
| 19 | Nut GB6170-M10EpZn-8 | 4013000007 | 77 |
| 20 | Washer GB97.1-10EpZn-300HV | 4015000162 | 79 |
| 21 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 25 |
| 22 | Plate | 27340111291 | 4 |
| 23 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 27 |
| 24 | Cable tie HS-J117 | 4130704969 | 25 |
