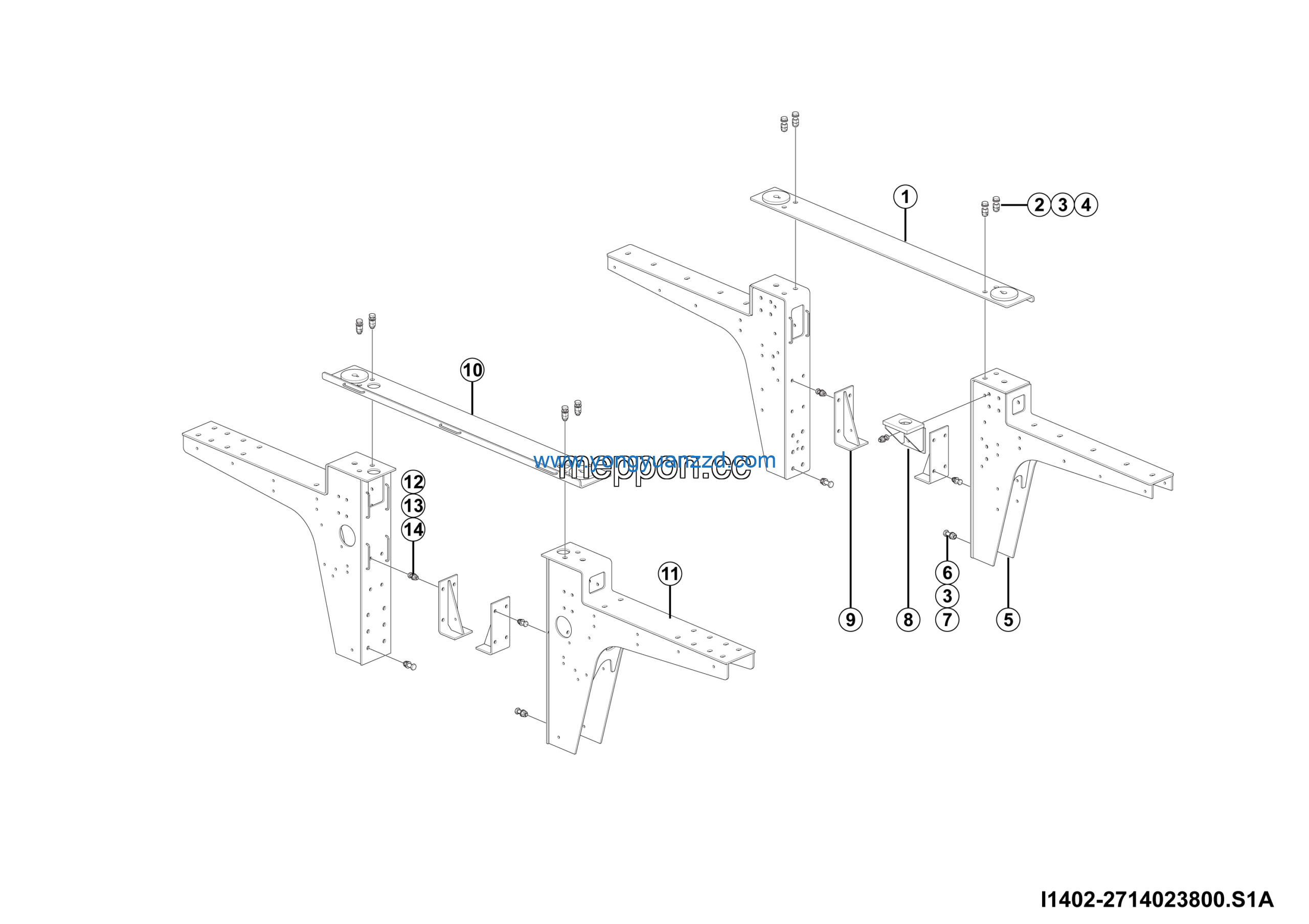

LGMG CMT106 2025 – Walkway brackets installation – I1402-2714023800.S1A
Category: 2025 > CMT106 > C1060Y3E0A104
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Beam wldmt (connecting walkway front brackets) | 27140238012 | 1 |
| 2 | Walkway front bracket wldmt | 27140238051 | 2 |
| 3 | Bolt GB5786-M14*1.5*40flZnyc-12.9-480 | 4011010551 | 20 |
| 4 | Washer GB97.1-14flZnyc-300HV-480 | 4015010341 | 20 |
| 5 | Nut GB6185.2-M14*1.5flZnyc-10-480 | 4013010538 | 20 |
| 6 | Briadge | 27140137274 | 1 |
| 7 | Bolt GB5783-M16*55EpZn-8.8 | 4011000612 | 8 |
| 8 | Washer GB97.1-16EpZn-300HV | 4015000181 | 32 |
| 9 | Nut GB6170-M16EpZn-8 | 4013000016 | 8 |
| 10 | Walkway rear bracket wldmt | 27140238031 | 2 |
| 11 | Bolt GB5783-M16*50EpZn-8.8 | 4011000269 | 24 |
| 12 | Nut GB6185.1-M16EpZn-8 | 4013010122 | 32 |
| 13 | SIGN | 27140128611 | 1 |
| 14 | Plate | 27140134471 | 4 |
