LGMG CMT106H 2025 – Covering piece electrical module – K2001-2720015482.S1E
Category: 2025 > CMT106H > C106HE0A0A701

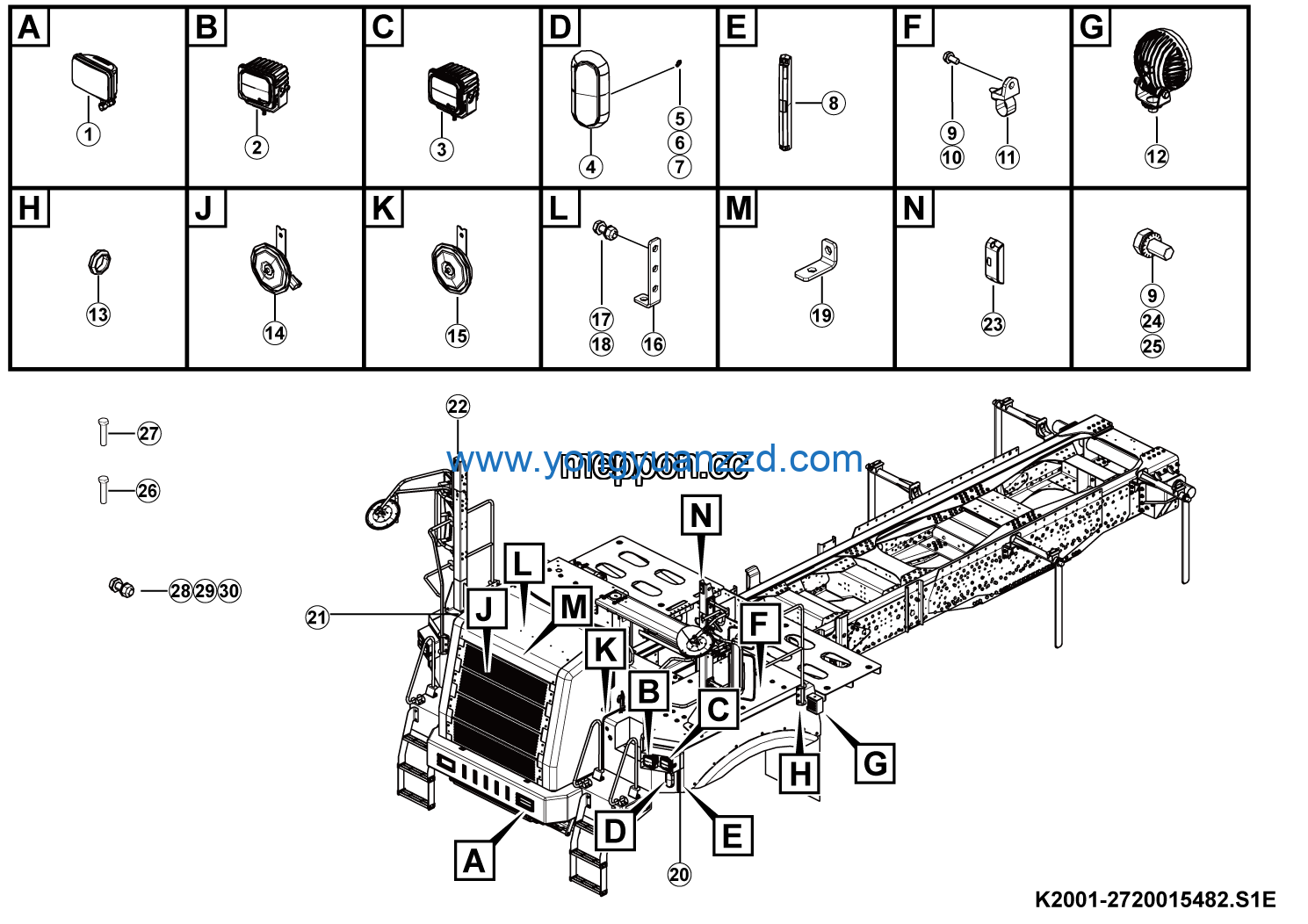

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-10EpZn-300HV | 4015000162 | 18 |
| 2 | Cable tie 14400342 | 4130703098 | 8 |
| 3 | White lamp work lamp WK-005 | 4130001150 | 2 |
| 4 | Sheath LGB313-6*32 | 4043001111 | 6 |
| 5 | Elec horn DL125-100LW-01L | 4130712685 | 1 |
| 6 | Elec horn DL125-100LW-01H | 4130712686 | 1 |
| 7 | Holder | 27200141551 | 1 |
| 8 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 7 |
| 9 | Nut GB6170-M10EpZn-8 | 4013000007 | 12 |
| 10 | Holder | 27200142321 | 1 |
| 11 | LED Fog lamp SM6053（three pin plug） | 4130000921 | 2 |
| 12 | Left platform harness | 27200155112 | 1 |
| 13 | Right platform harness | 27200155122 | 1 |
| 14 | Outline light harness-1800 | 27200168221 | 2 |
| 15 | SMG-011 Side marker lamp 3112040324 | 4130001148 | 2 |
| 16 | Double sack wedge lock washer HF10 | 4190708409 | 2 |
| 17 | Washer GB862.2-10-65Mn | 4015010586 | 2 |
| 18 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 3 |
| 19 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 2 |
| 20 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 2 |
| 21 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 22 | Spotlamp work lamp WK-55HL（3312040131） | 4130001153 | 2 |
| 23 | Nut GB6170-M8EpZn-8 | 4013000033 | 2 |
| 24 | Floodlamp work lamp WK-55HL（3312040210） | 4130001152 | 2 |
| 25 | Third generation turn signal DI-621 | 4130705210 | 2 |
| 26 | Screw GB818-M4*20flZnyc-4.8-480 | 4014010121 | 12 |
| 27 | Washer GB97.1-4EpZn-300HV | 4015000135 | 12 |
| 28 | Nut GB6172.1-M4EpZn-05 | 4013000047 | 12 |
| 29 | Daytime running lamp | 4130001212 | 2 |
| 30 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 2 |
