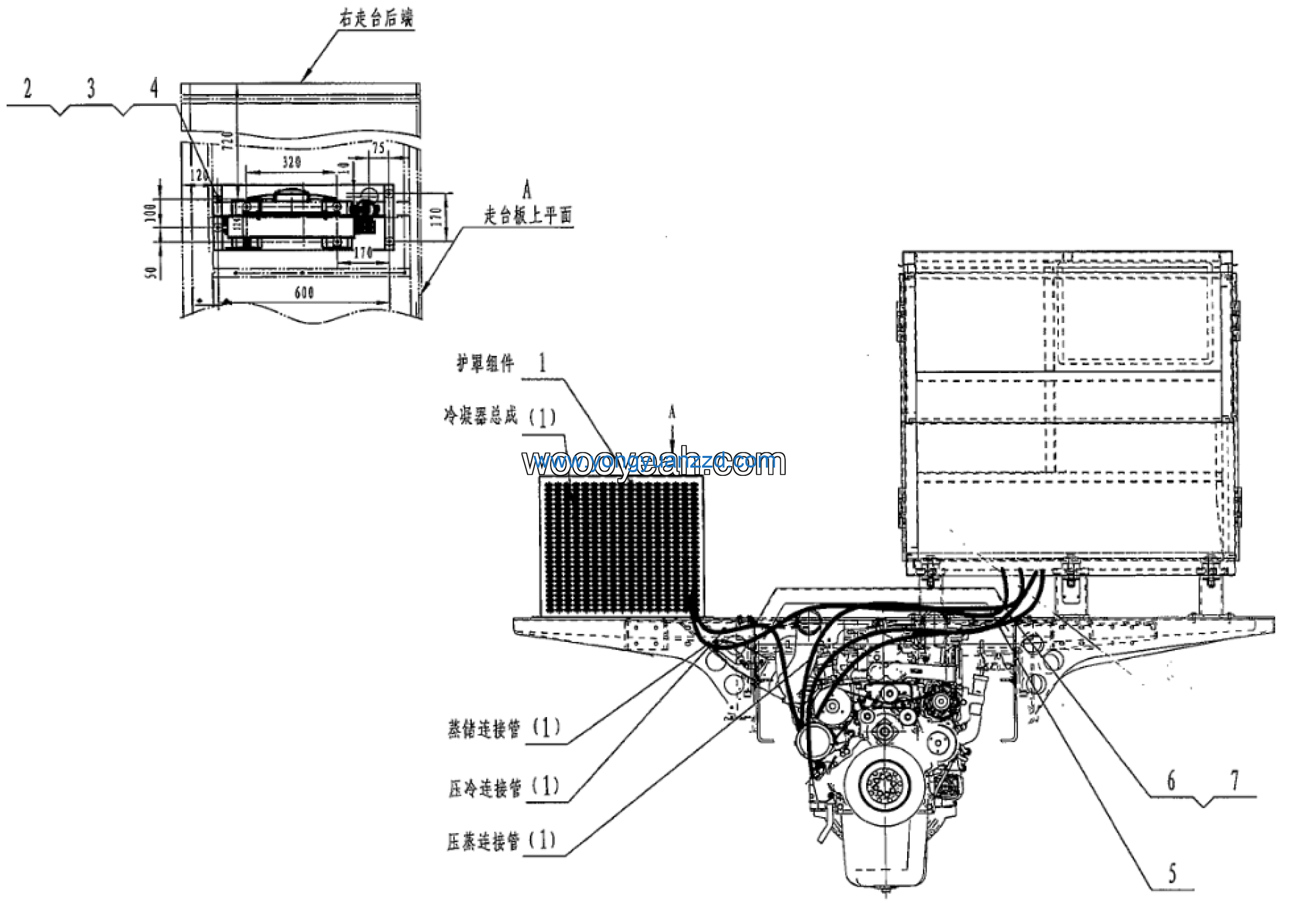

LGMG CMT65 Mine Truck – Air conditioner assy – N2101-2721010272.S
Category: Mine Truck > CMT65 > C0650HA00
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Condenser mounting assy | 4190001349 | 1 |
| 2 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 8 |
| 3 | Washer GB97.1-10EpZn-300HV | 4015000162 | 8 |
| 4 | Nut GB6170-M10EpZn-8 | 4013000007 | 8 |
| 5 | Warm air inlet pipe | 4190001381 | 1 |
| 6 | Warm air water pipe | 4190001382 | 1 |
| 7 | Clamp | 27210101691 | 4 |
