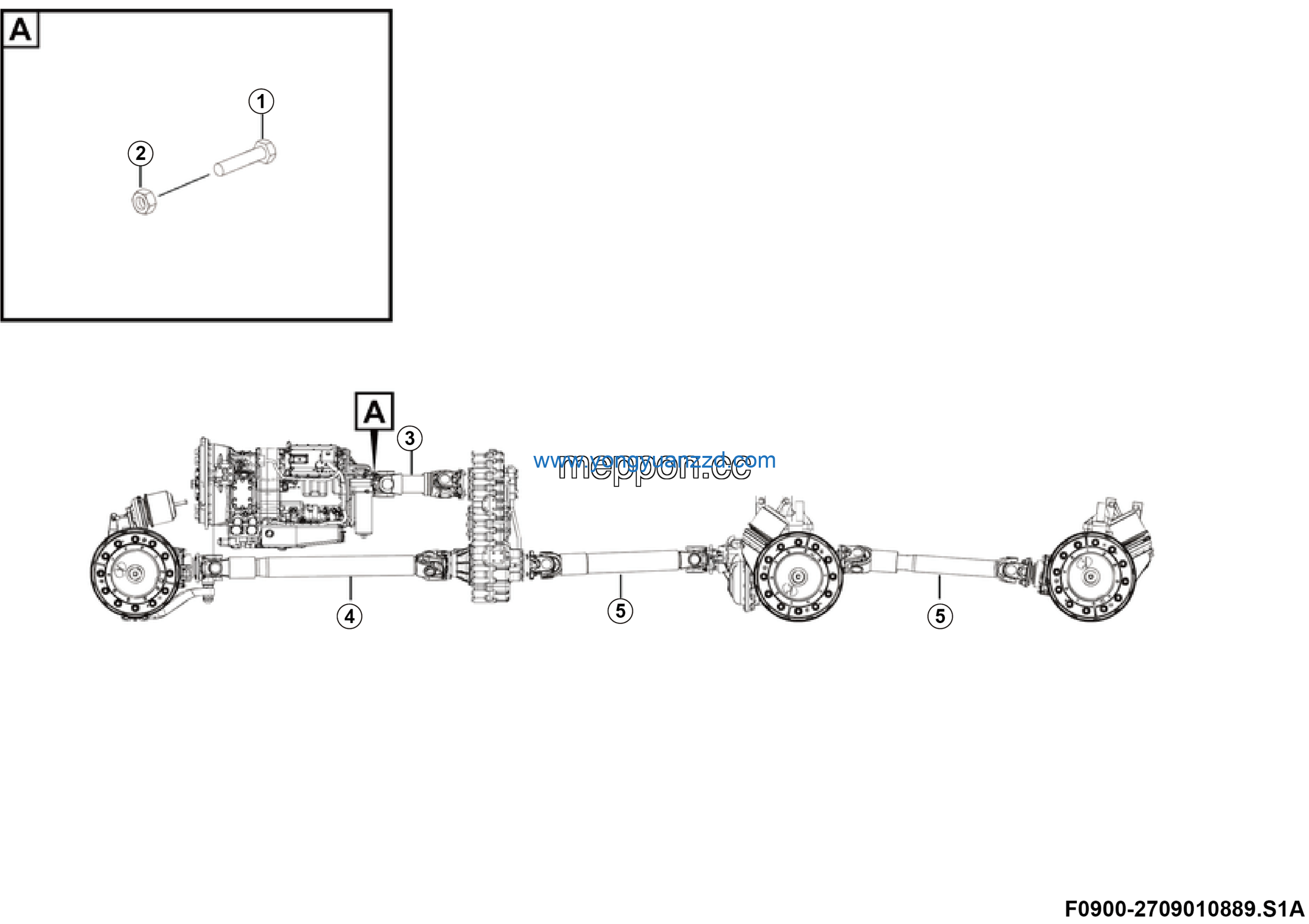

LGMG CMT66A 2025 – Drive shafts installation – F0900-2709010889.S1A

Category:

LGMG CMT66A 2025 – Drive shafts installation – F0900-2709010889.S1A

Category: 2025 > CMT66A > C066AW3E0A019

Parts List:

No. Part Name Part Number Qty
1 Bolt GB5786-M14*1.5*50flZnyc-12.9-480 4011010642 4
2 Nut GB6185.2-M14*1.5flZnyc-12-480 4013010568 32
3 Transmission shaft assy 4110001493 1
4 Transmission shaft assy 4110702461 1
5 Transmission shaft assy 4110702463 2
