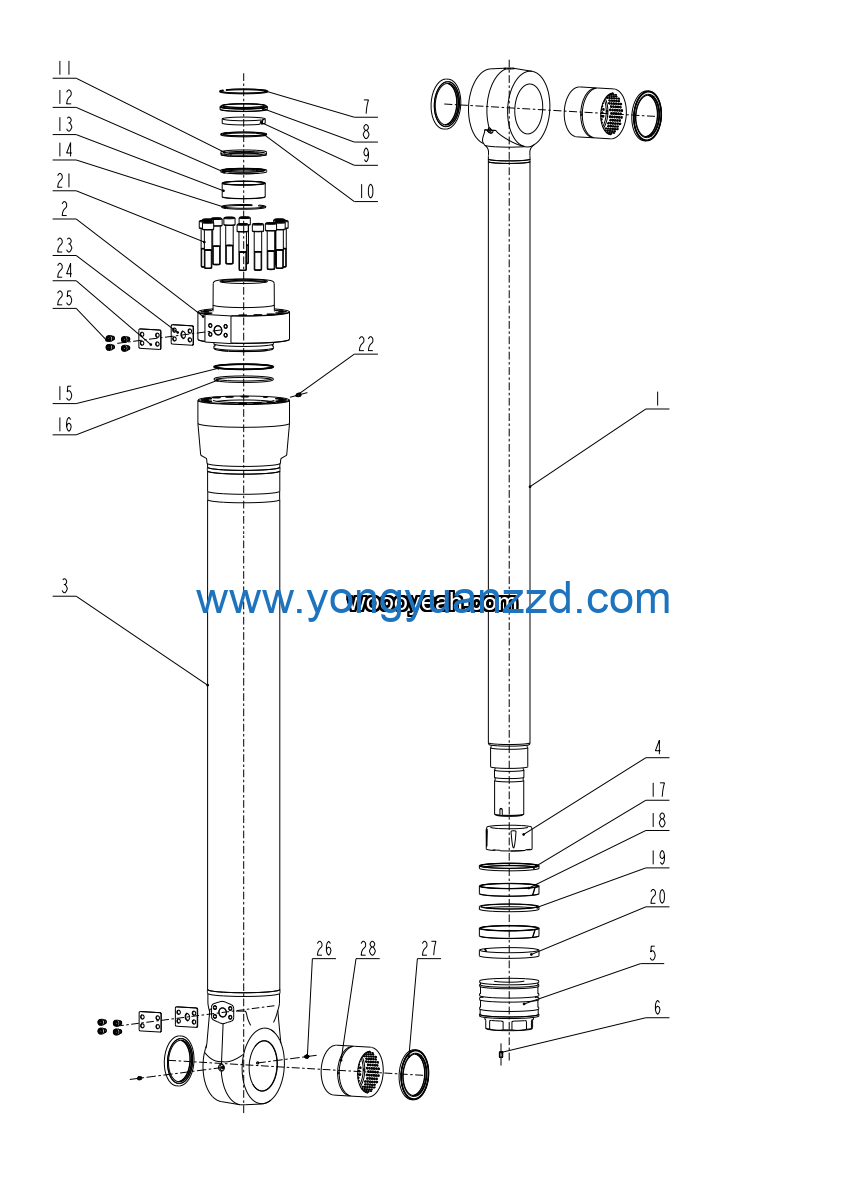

LGMG Hydraulic excavator 2025 – CYLINDER – F0700-4120709673
Category: 2025 > Hydraulic excavator > ME106-1 > E10600C3A000
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Snap ring BKU001500-E0 | 4120704119008 | 1 |
| 2 | Buffer ring HBY FQ0871F6 | 4120704119009 | 1 |
| 3 | Rod sealing ring IUH 150*165*9 | 4120704119007 | 1 |
| 4 | Sliding bushing 15050DP31 | 4120704119010 | 1 |
| 5 | Snap ring Q/HL 102123-2010 | 4120707213015 | 1 |
| 6 | O-ring retaining ring (φ215 * φ206.3 * 2) bko002150-e0 | 4120709673008 | 1 |
| 7 | O-ring (φ202.57 * 5.33) or2-369-n1 | 4120709673009 | 1 |
| 8 | Containment ring Q/HL102178-2020 | 4120707202019 | 1 |
| 9 | Guide ring Q/HL 102177-2020 | 4120707202021 | 2 |
| 10 | Hole sealing ring (φ215 * φ189.74 * 9.63) pgwc000011z66h9 | 4120709673010 | 1 |
| 11 | Piston rod (φ150 * 2579) 11482.0084Y.100 | 4120709673001 | 1 |
| 12 | Guide ring (φ215 * φ209 * 20) swr 215 * 209 * 20 pc80 | 4120709673011 | 1 |
| 13 | Screw GB/T70.1 | 4120706520003 | 12 |
| 14 | Pressure measuring plug BSPT5406-HP-04-SPL | 4120707213022 | 1 |
| 15 | Rubber gasket Q/HL 102135-2012 | 4120707213027 | 2 |
| 16 | Oil port cover Q/HL 102130-2011 | 4120707213026 | 2 |
| 17 | Screw GB/T70.1 | 4120706520003 | 8 |
| 18 | Grease nipple GB1152 | 4120704119020 | 2 |
| 19 | Dust seal DKSU001500-U1 | 4120704117022 | 4 |
| 20 | Honeycomb bushing | 4120716997016 | 1 |
| 21 | End cap(f330*f215*f150*245)11482.0084y.002 | 4120709673002 | 1 |
| 22 | Cylinder (φ260/φ215 * 2425) 11482.0084y.300 | 4120709673003 | 1 |
| 23 | Buffer sleeve (φ165 * φ135 * 80) 01384.0072y.005 | 4120709673004 | 1 |
| 24 | Piston (d215/d150 m105 * 4) 11482.0084y.005 | 4120709673005 | 1 |
| 25 | Inner hexagon flat end adapter bolt (M12 * 20) GB/T 77GB/T 77 | 4120709673006 | 1 |
| 26 | Dust ring snap ring Q/HL 102222-2016（d160/φ186*2.5） | 4120708284006 | 1 |
| 27 | Dust ring (φ150 * φ170 * 10/14) dkwu001500-u1 | 4120709673007 | 1 |
| 28 | Guide ring GR7301500-C480 | 4120704119019 | 1 |
