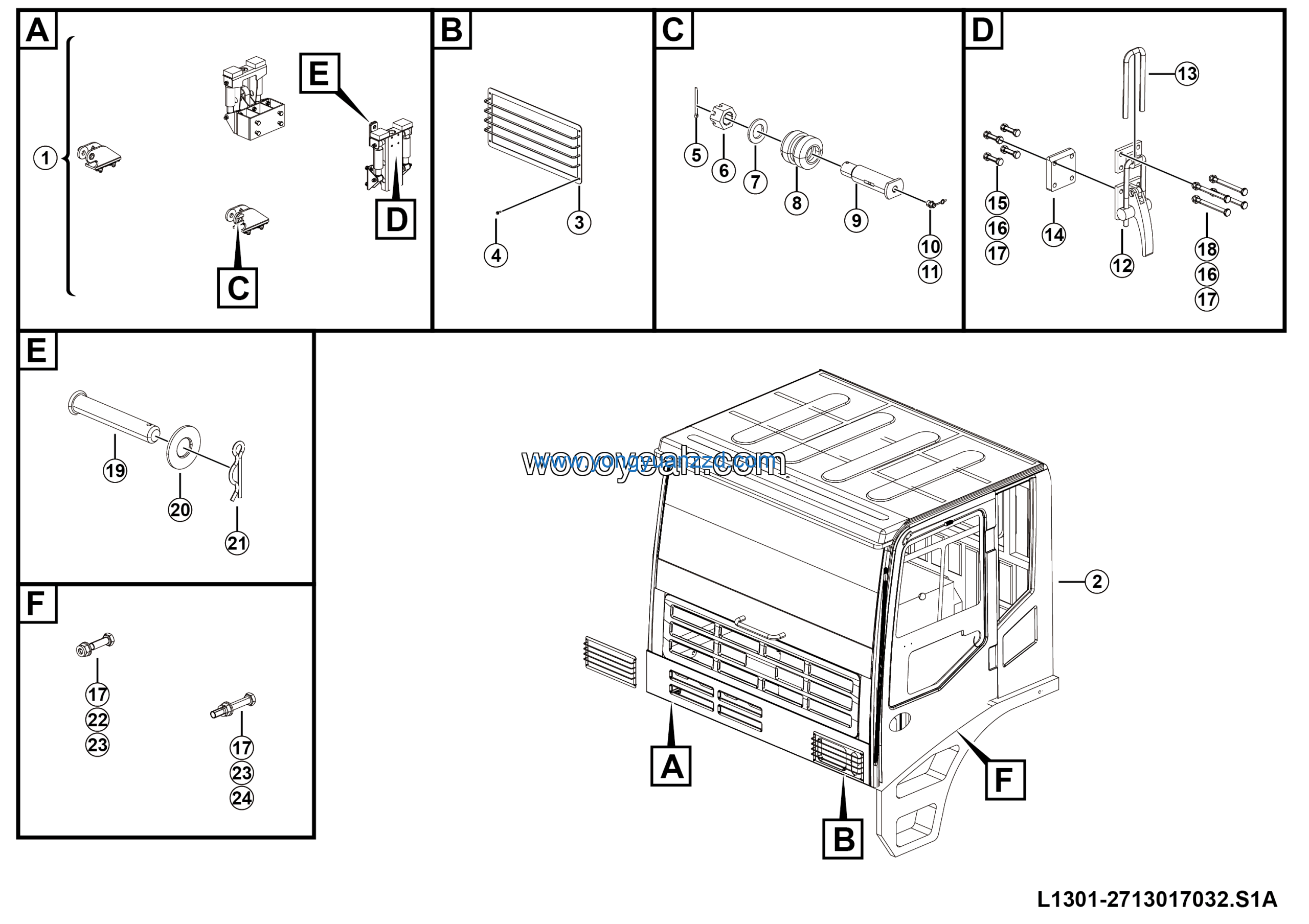

LGMG Mine Truck 2026 – Cab installation – L1301-2713017032.S1A
Category: 2026 > Mine Truck > MT60 > M060DW3E0M106
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Grease nipple JB7940.1-M10*1 | 4030000065 | 2 |
| 2 | Butter nozzle cap JXHF-00006 | 4120000015 | 2 |
| 3 | Mechanical lock assy | 4190002377 | 2 |
| 4 | U-polit | 27130117912 | 2 |
| 5 | Plate | 27130117291 | 2 |
| 6 | Bolt GB5783-M10*45EpZn-8.8 | 4011000514 | 8 |
| 7 | Washer GB93-10-65Mn | 4015000025 | 16 |
| 8 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 24 |
| 9 | Bolt GB5782-M10*110EpZn-8.8 | 4011000797 | 8 |
| 10 | Pipe | 27130117631 | 1 |
| 11 | Left back suspension assembly | 27130118261 | 1 |
| 12 | Retaining ring | 27130117601 | 1 |
| 13 | Sping | 27130117641 | 1 |
| 14 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 4 |
| 15 | Washer GB97.1-10EpZn-300HV | 4015000162 | 8 |
| 16 | Bolt GB5782-M10*70EpZn-8.8 | 4011000051 | 4 |
| 17 | Tiltable left-mounted cab lg13-jss-7033 | 27130170331 | 1 |
| 18 | Air conditioner assembly | 27360154701 | 2 |
| 19 | Bolt GB16674.1-M5*16EpZn-8.8 | 4011010372 | 8 |
| 20 | Pin GB91-4*45EpZn-Q235A | 4016000057 | 2 |
| 21 | Nut GB9459-M24*2-8 | 4013000274 | 2 |
| 22 | Washer GB97.1-24EpZn-300HV | 4015000167 | 2 |
| 23 | Front suspension lining | 27130104471 | 2 |
| 24 | Roller alxe | 27130133601 | 2 |
