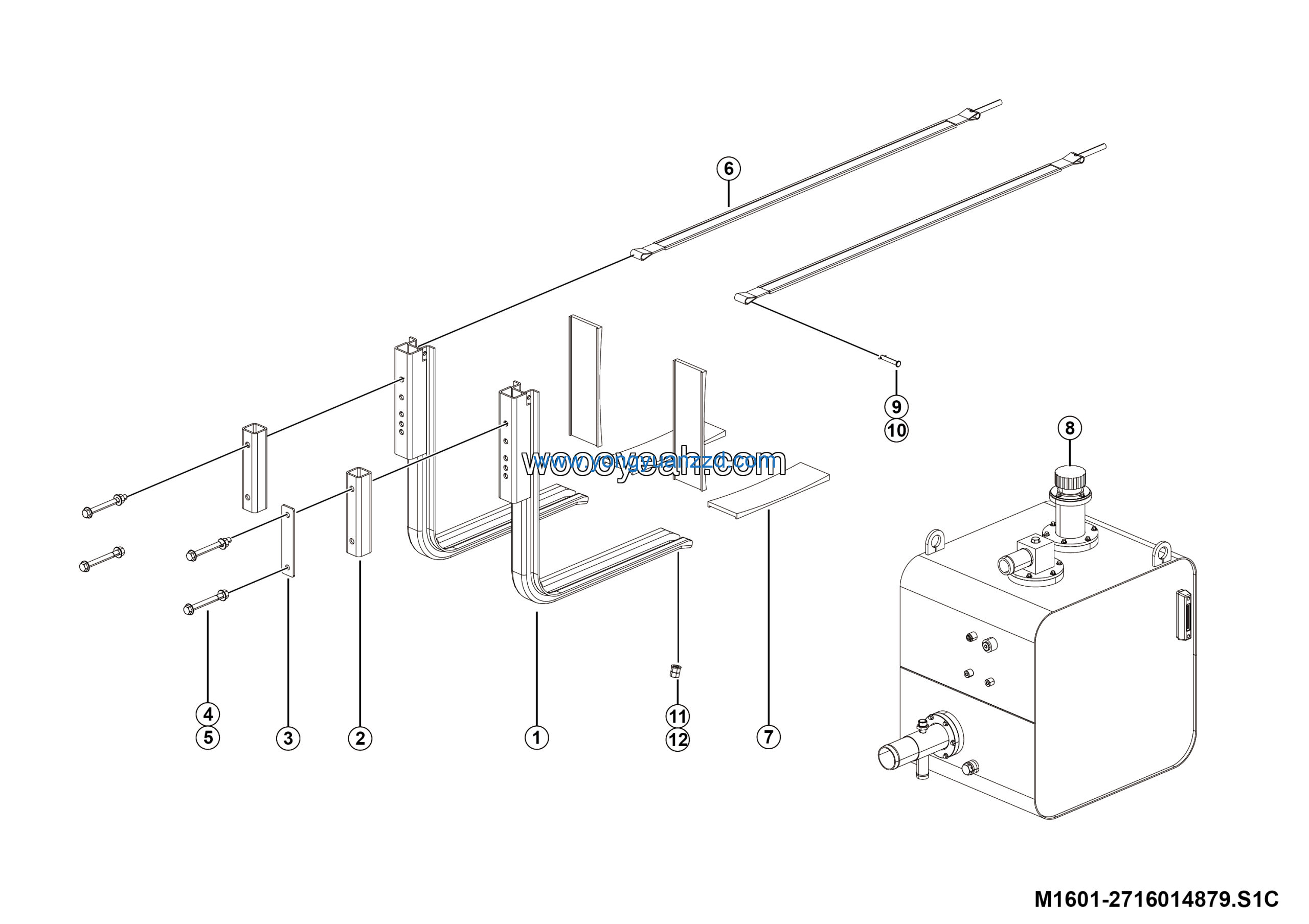

LGMG Mine Truck 2026 – Hyd oil tank assy – M1601-2716014879.S1C
Category: 2026 > Mine Truck > MTH126M > C1260Y3A0A206
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Pin GB91-3.2*22EpZn-Q235A | 4016000183 | 2 |
| 2 | Washer GB97.1-16flZnyc-300HV-480 | 4015010287 | 2 |
| 3 | Nut GB6170-M16flZnyc-8-480 | 4013000393 | 4 |
| 4 | Bracket assy | 27160146312 | 2 |
| 5 | Square tube 60*6*267 | 27160134561 | 2 |
| 6 | Plate 230*50*6 | 27160145951 | 1 |
| 7 | Bolt gb5789-m16*1.5*160flznyc-12.9-480 | 4011011955 | 4 |
| 8 | Nut gb6187.2-m16*1.5flznyc-12-480 | 4013010635 | 4 |
| 9 | Cable tie assy | 27160146351 | 2 |
| 10 | Hyd oil tank strap liner | 27160159191 | 4 |
| 11 | Hyd oil tank assy | 27160157341 | 1 |
| 12 | Pin | 4110000120 | 2 |
