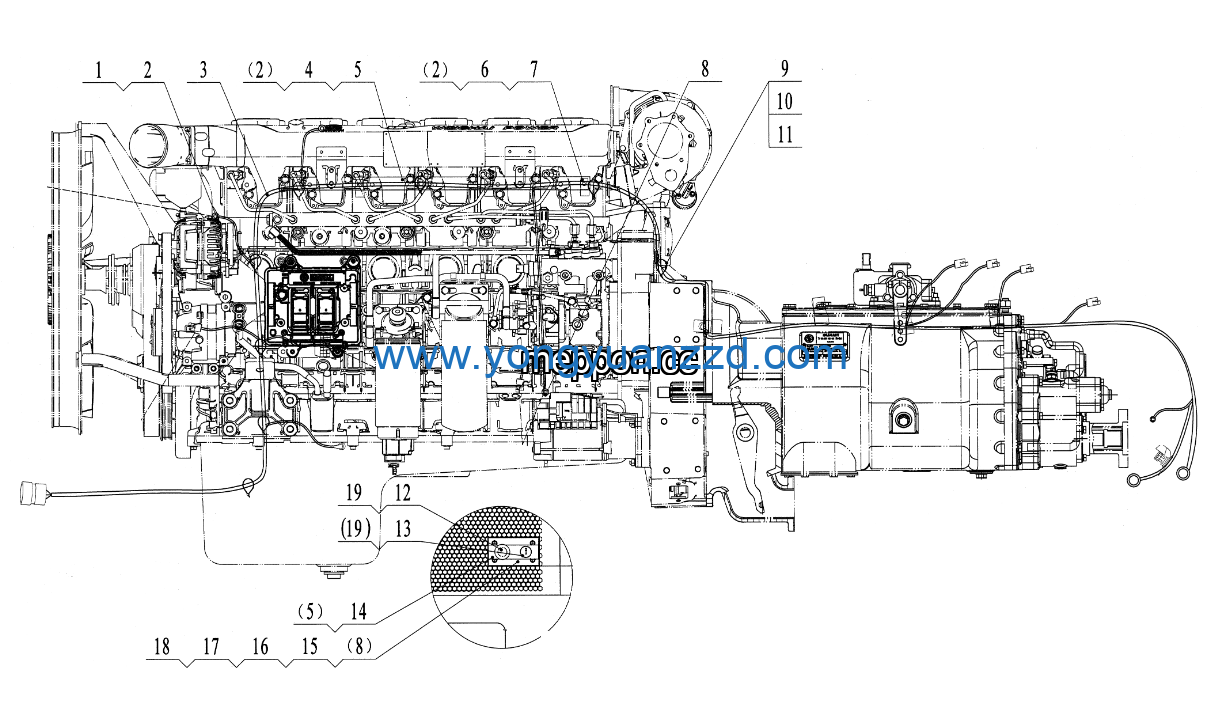

LGMG Off-Highway Dump Truck 2021 – Engine electric system – K2000-2734010348
Category: 2021 > Off-Highway Dump Truck > MT86H > M086HWF17
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Pipe clamp | 26370001941 | 3 |
| 2 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 1 |
| 3 | Emergency stop switch ZB2BS64C | 4130703873 | 1 |
| 4 | Start switch ZB2BA3C | 4130703874 | 1 |
| 5 | Plate | 27340102581 | 1 |
| 6 | Plate | 27200120411 | 1 |
| 7 | Plate | 27200120421 | 1 |
| 8 | Bolt GB16674.1-M10*35EpZn-8.8 | 4011000164 | 4 |
| 9 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 10 | Contact moduele with base ZB2BZ101C | 4130703636 | 2 |
| 11 | Nut GB6170-M8EpZn-8 | 4013000033 | 1 |
| 12 | Washer GB96.1-8EpZn-300HV | 4015000256 | 9 |
| 13 | Wire | 27340103491 | 1 |
| 14 | Holder | 27340103471 | 1 |
| 15 | Bolt GB5783-M8*16EpZn-8.8 | 4011000102 | 4 |
| 16 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 4 |
| 17 | Cable tie 14400342 | 4130703098 | 4 |
| 18 | Nut GB6170-M10EpZn-8 | 4013000007 | 7 |
| 19 | Engine wiring harness fixed system | 27340101511 | 1 |
