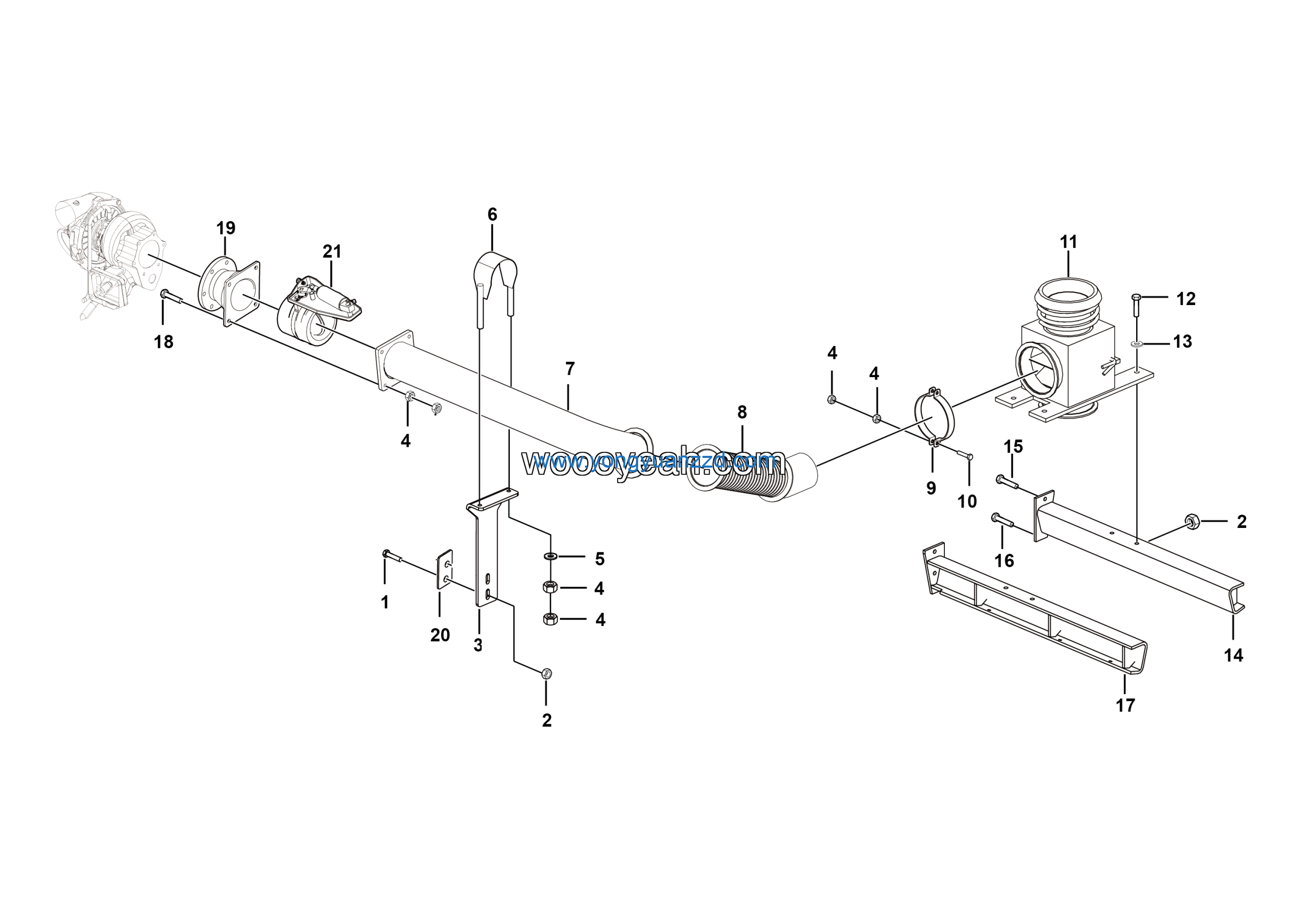

LGMG Off-Highway Dump Truck 2021 – Exhaust system assy – A2405-2724010319
Category: 2021 > Off-Highway Dump Truck > MT95H > M095HWA58
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5782-M10*65EpZn-8.8 | 4011000497 | 2 |
| 2 | Buffer box | 4110001410 | 1 |
| 3 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 4 |
| 4 | Washer GB96.1-12EpZn-300HV | 4015000186 | 11 |
| 5 | Right plate | 27240102131 | 1 |
| 6 | Bolt GB5782-M12*65EpZn-8.8 | 4011000261 | 1 |
| 7 | Bolt GB5783-M12*45EpZn-8.8 | 4011000207 | 3 |
| 8 | Left plate | 27240102111 | 1 |
| 9 | Bolt GB16674.1-M10*120EpZn-8.8 | 4011000601 | 4 |
| 10 | JOINT NIPPLE | 27240101121 | 1 |
| 11 | Bolt GB5783-M12*55EpZn-8.8 | 4011000254 | 2 |
| 12 | PLATE | 27240102591 | 1 |
| 13 | Exhaust brake butterfly valve | 4110000157 | 1 |
| 14 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 10 |
| 15 | Frame | 27240102101 | 1 |
| 16 | Nut GB6170-M10EpZn-8 | 4013000007 | 16 |
| 17 | Washer GB97.1-10EpZn-300HV | 4015000162 | 6 |
| 18 | PLATE | 27240102051 | 1 |
| 19 | Upr exhaust pipe | 4110703201 | 1 |
| 20 | Lower exhaust pipe | 4110703095 | 1 |
| 21 | Clamp | 4110000768 | 2 |
