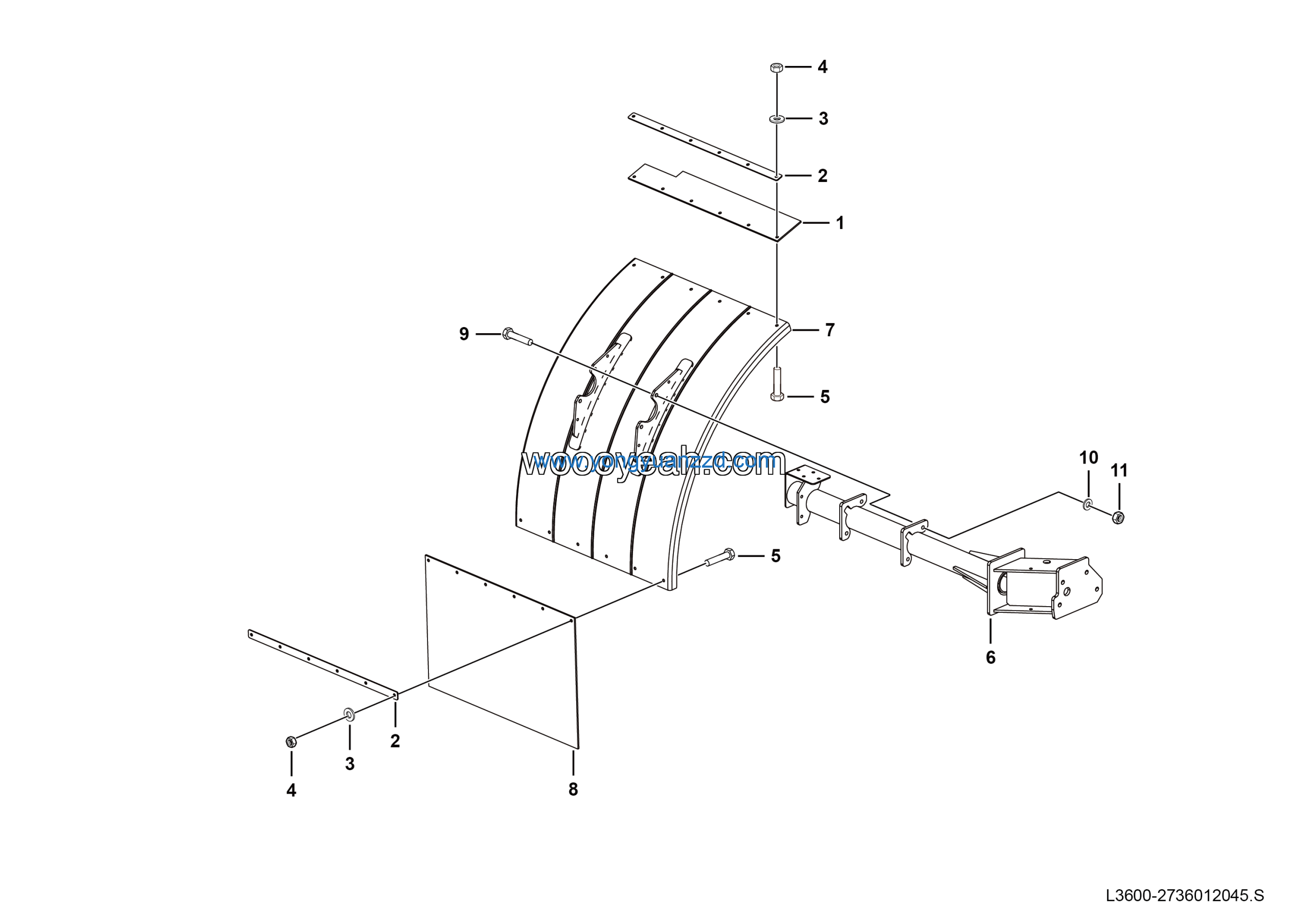

LGMG Off-Highway Dump Truck 2021 – Left mudguard assy – L3600-2736012045.S
Category: 2021 > Off-Highway Dump Truck > MT105 > M105HW3A0M001-1
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-12EpZn-300HV | 4015000168 | 4 |
| 2 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 4 |
| 3 | Rubber | 27360113521 | 1 |
| 4 | Hold-down plate | 27360112711 | 2 |
| 5 | Washer GB97.1-8EpZn-300HV | 4015000072 | 12 |
| 6 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 12 |
| 7 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 12 |
| 8 | Left bracket | 27360120441 | 1 |
| 9 | Mudguard tile assembl | 27360120431 | 1 |
| 10 | Mudflap | 27360109252 | 1 |
| 11 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 4 |
