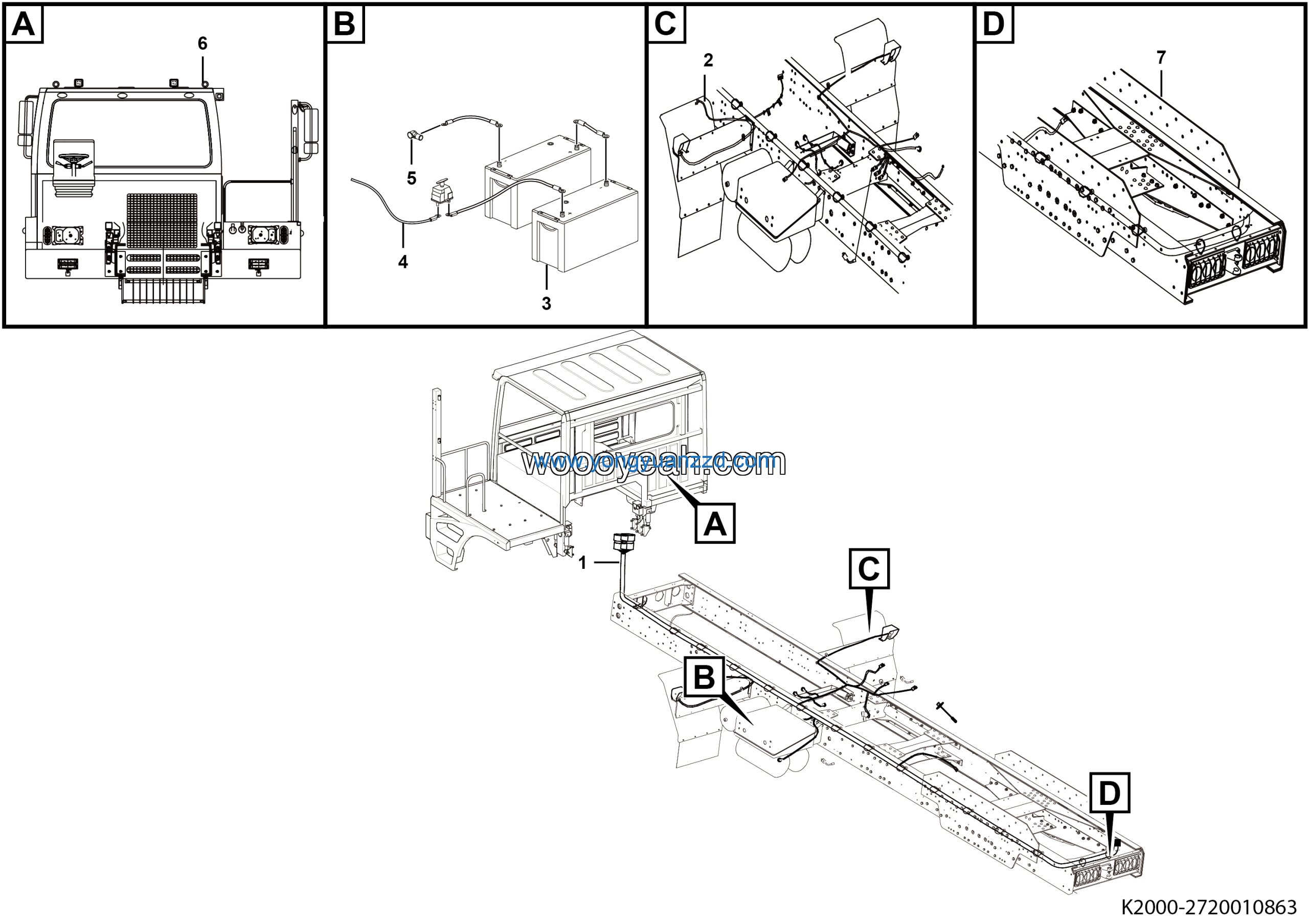

LGMG Off-Highway Dump Truck 2022 – Chassis electric system – K2001-2720010863
Category: 2022 > Off-Highway Dump Truck > MT60D > M060DW2E0M103
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Frame wire | 27200108621 | 1 |
| 2 | Frame central electrical module | 27200108641 | 1 |
| 3 | THE BACK DOOR ASSEMBLY | 27200108601 | 1 |
| 4 | Wire | 27200107751 | 1 |
| 5 | Red battery cable sheath | 26370002451 | 1 |
| 6 | Electrical module | 27200109261 | 1 |
| 7 | Signal module | 27200107531 | 1 |
