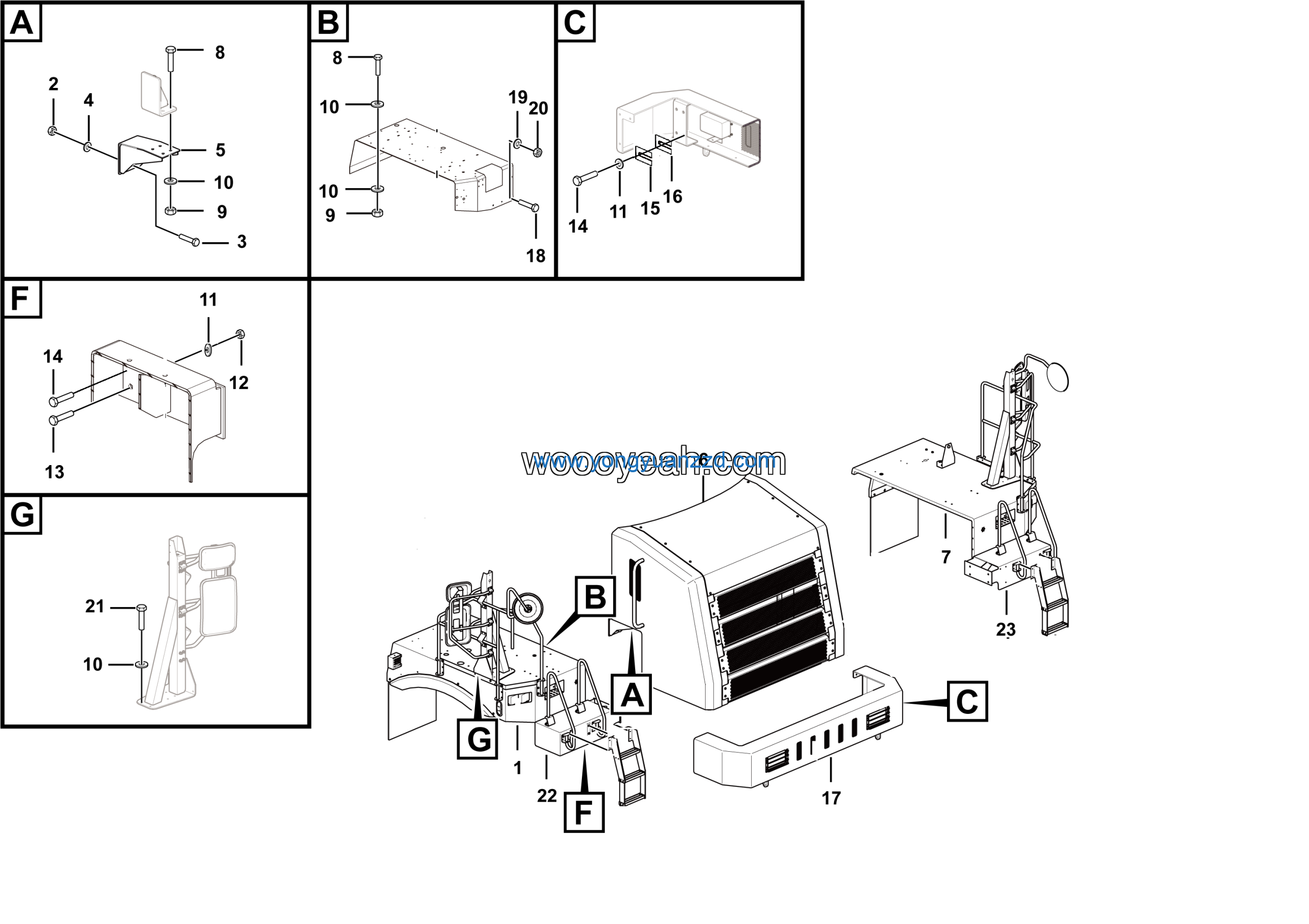

LGMG Off-Highway Dump Truck 2022 – Covering assy – L3601-2736011670
Category: 2022 > Off-Highway Dump Truck > CMT96 > C0960WF34
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB96.1-12EpZn-300HV | 4015000186 | 26 |
| 2 | Washer GB97.1-16EpZn-300HV | 4015000181 | 16 |
| 3 | Nut GB6185.1-M16EpZn-8 | 4013010122 | 8 |
| 4 | Bolt GB5783-M16*50EpZn-8.8 | 4011000269 | 6 |
| 5 | Bolt GB5782-M16*60EpZn-8.8 | 4011000068 | 10 |
| 6 | Trimmed gasket | 27130107671 | 4 |
| 7 | Trimmed gasket | 27130107681 | 4 |
| 8 | PLATE | 27360117301 | 1 |
| 9 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 6 |
| 10 | Washer GB96.1-10EpZn-300HV | 4015000197 | 6 |
| 11 | PLATE | 27360116721 | 1 |
| 12 | Nut GB6170-M10EpZn-8 | 4013000007 | 6 |
| 13 | Bolt GB5782-M12*120EpZn-10.9 | 4011010510 | 8 |
| 14 | Assembly of treadle on left | 27360118181 | 1 |
| 15 | Assembly of treadle on right | 27360118261 | 1 |
| 16 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 8 |
| 17 | Bolt GB5783-M12*35EpZn-8.8 | 4011000090 | 8 |
| 18 | Washer GB97.1-12EpZn-300HV | 4015000168 | 8 |
| 19 | PLATE | 27360116811 | 2 |
| 20 | PLATE | 27360116841 | 1 |
| 21 | PLATE | 27360116781 | 1 |
| 22 | Bolt GB5782-M12*110EpZn-10.9 | 4011010519 | 18 |
| 23 | Nut GB6185.1-M12EpZn-10 | 4013010134 | 26 |
