LGMG Off-Highway Dump Truck 2022 – Covering assy – L3601-2736014116.S1A
Category: 2022 > Off-Highway Dump Truck > MTE108 > C1080W3A0M401

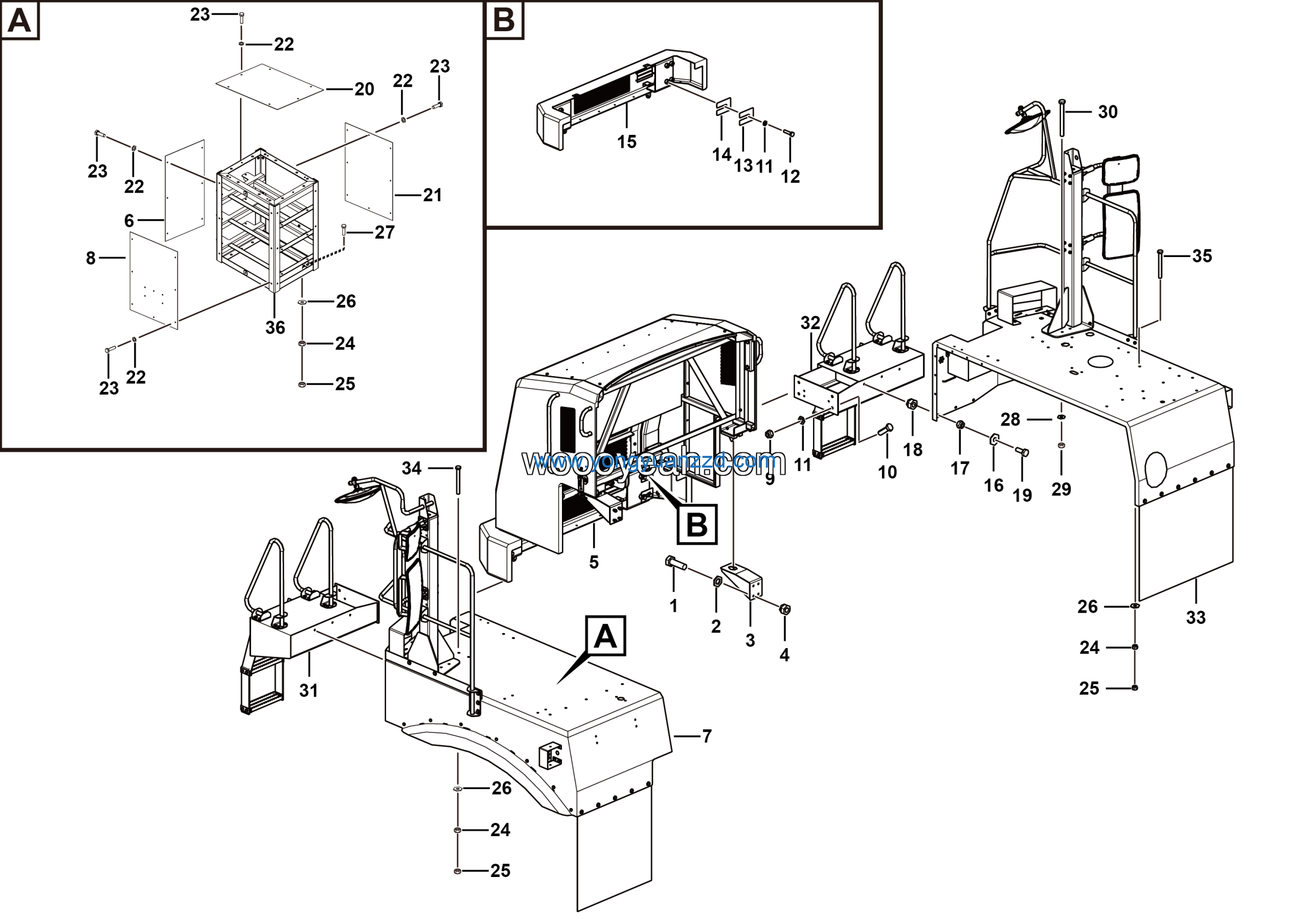

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M16*50EpZn-8.8 | 4011000269 | 6 |
| 2 | Washer GB97.1-16EpZn-300HV | 4015000181 | 16 |
| 3 | Bolt GB5782-M16*60EpZn-8.8 | 4011000068 | 10 |
| 4 | Trimmed gasket | 27130107681 | 4 |
| 5 | Trimmed gasket | 27130107671 | 4 |
| 6 | Bumper assembly | 27360136691 | 1 |
| 7 | Washer GB96.1-10EpZn-300HV | 4015000197 | 6 |
| 8 | Nut GB6185.1-M10EpZn-10 | 4013010133 | 6 |
| 9 | Nut GB6170-M10EpZn-8 | 4013000007 | 6 |
| 10 | Bolt GB5783-M10*35EpZn-10.9 | 4011000569 | 6 |
| 11 | Bolt GB5783-M12*35EpZn-8.8 | 4011000090 | 8 |
| 12 | Plate | 27360136251 | 1 |
| 13 | Plate | 27360136731 | 1 |
| 14 | Washer GB97.1-8-300HV | 4015000315 | 28 |
| 15 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 28 |
| 16 | Nut GB6185.2-M14*1.5-12 | 4013010266 | 68 |
| 17 | Nut GB6171-M14*1.5EpZn-10 | 4013010007 | 68 |
| 18 | Washer GB96.1-14EpZn-300HV | 4015000188 | 136 |
| 19 | Bolt GB5786-M14*1.5*50flZnyc-12.9-480 | 4011010642 | 4 |
| 20 | Washer GB96.1-12EpZn-300HV | 4015000186 | 8 |
| 21 | Nut GB6185.1-M12EpZn-10 | 4013010134 | 8 |
| 22 | Washer GB97.1-12EpZn-300HV | 4015000168 | 8 |
| 23 | Bolt GB5782-M12*120EpZn-10.9 | 4011010510 | 8 |
| 24 | Left platform assemb | 27360133191 | 1 |
| 25 | Right platform assemb | 27360133171 | 1 |
| 26 | Right platform assembly | 27360136461 | 1 |
| 27 | BOLT GB5785-M14*1.5*130flZnyc-12.9-480 | 4011011533 | 50 |
| 28 | Bolt GB5785-M14*1.5*140flZnyc-12.9-480 | 4011011513 | 14 |
| 29 | Platform weldingy | 27360136241 | 1 |
| 30 | PLATE | 27360116811 | 2 |
| 31 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 8 |
| 32 | Hood | 27360133131 | 1 |
| 33 | Plate | 27360136271 | 1 |
| 34 | Right platform assembly | 27360141171 | 1 |
| 35 | Plate | 27360136261 | 1 |
| 36 | Nut GB6185.1-M16EpZn-8 | 4013010122 | 8 |
