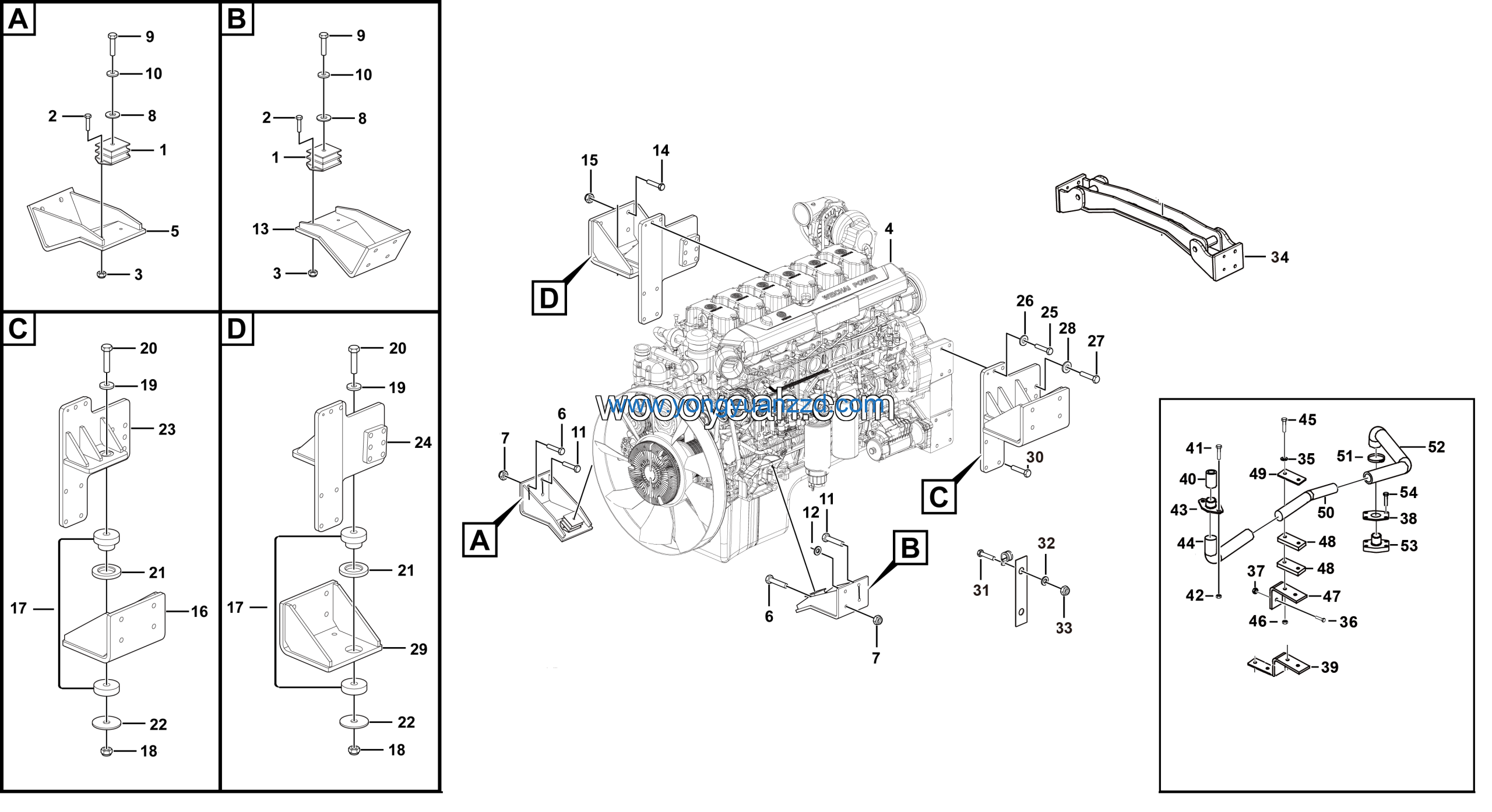

LGMG Off-Highway Dump Truck 2022 – Engine assy – A0101-2701012361.S1B
Category: 2022 > Off-Highway Dump Truck > CMT66 > C0660W3E0A007
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB96.1-12EpZn-300HV | 4015000186 | 2 |
| 2 | Bolt GB5783-M16*70flZnyc-12.9-480 | 4011010569 | 4 |
| 3 | Washer gb1230-18-45 | 27120105414 | 4 |
| 4 | Support | 27010113881 | 1 |
| 5 | Bolt GB5782-M16*60flZnyc-12.9-480 | 4011010623 | 8 |
| 6 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 12 |
| 7 | Support | 27010123681 | 1 |
| 8 | Shock absorber 530903-45 | 4110001123 | 2 |
| 9 | Nut GB6185.1-M22EpZn-10 | 4013010139 | 4 |
| 10 | Washer GB97.1-22EpZn-300HV | 4015000184 | 4 |
| 11 | FR suspension cushion | 4110000331 | 2 |
| 12 | Bolt GB5782-M22*130EpZn-10.9 | 4011010256 | 4 |
| 13 | Frame | 27010109391 | 4 |
| 14 | Plate | 27010105441 | 4 |
| 15 | left leg | 27010123641 | 1 |
| 16 | right leg | 27010123661 | 1 |
| 17 | Bolt GB5786-M14*1.5*40EpZn-10.9 | 4011000214 | 12 |
| 18 | Washer GB1230-14EpZn-45 | 4015000358 | 12 |
| 19 | Bolt GB5783-M16*60EpZn-10.9 | 4011010205 | 10 |
| 20 | Washer GB97.1-16EpZn-300HV | 4015000181 | 22 |
| 21 | Support | 27010123711 | 1 |
| 22 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 4 |
| 23 | Bolt GB5782-M10*55EpZn-8.8 | 4011000049 | 1 |
| 24 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 1 |
| 25 | Washer GB97.1-8EpZn-300HV | 4015000072 | 1 |
| 26 | Nut GB6170-M8EpZn-8 | 4013000033 | 1 |
| 27 | Transmission anchorage assembly | 27010123621 | 1 |
| 28 | Washer GB96.1-10EpZn-300HV | 4015000197 | 8 |
| 29 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 4 |
| 30 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 4 |
| 31 | Asbestos plate | 27010113631 | 1 |
| 32 | SYSTEM | 27010117121 | 1 |
| 33 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 5 |
| 34 | Plate | 23050000181 | 1 |
| 35 | Bolt GB5783-M12*30EpZn-8.8 | 4011000089 | 2 |
| 36 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 2 |
| 37 | Connecting pipe | 27010111231 | 1 |
| 38 | Pipe | 27010114271 | 1 |
| 39 | Bolt GB5782-M10*90EpZn-8.8 | 4011000053 | 4 |
| 40 | Nut GB6170-M10EpZn-8 | 4013000007 | 4 |
| 41 | Frame | 27010114241 | 2 |
| 42 | Rubber block | 27010113511 | 4 |
| 43 | Plate | 27010113521 | 2 |
| 44 | Engine assy WP12G460E310 | 4110705523 | 1 |
| 45 | Pipe | 27010114251 | 1 |
| 46 | No longer used | 4019010217 | 4 |
| 47 | Pipe | 27010114261 | 1 |
| 48 | Pipe | 27010113811 | 1 |
| 49 | Bolt GB5782-M6*30-8.8 | 4011000712 | 4 |
| 50 | Support | 27010113911 | 1 |
| 51 | Bolt GB5785-M18*1.5*90flZnyc-12.9-480 | 4011010496 | 4 |
| 52 | Nut GB6185.2-M18*1.5flZnyc-12-480 | 4013010239 | 4 |
| 53 | Trimmed gasket | 27010106821 | 2 |
| 54 | Bolt GB5786-M12*1.5*30EpZn-10.9 | 4011010276 | 2 |
