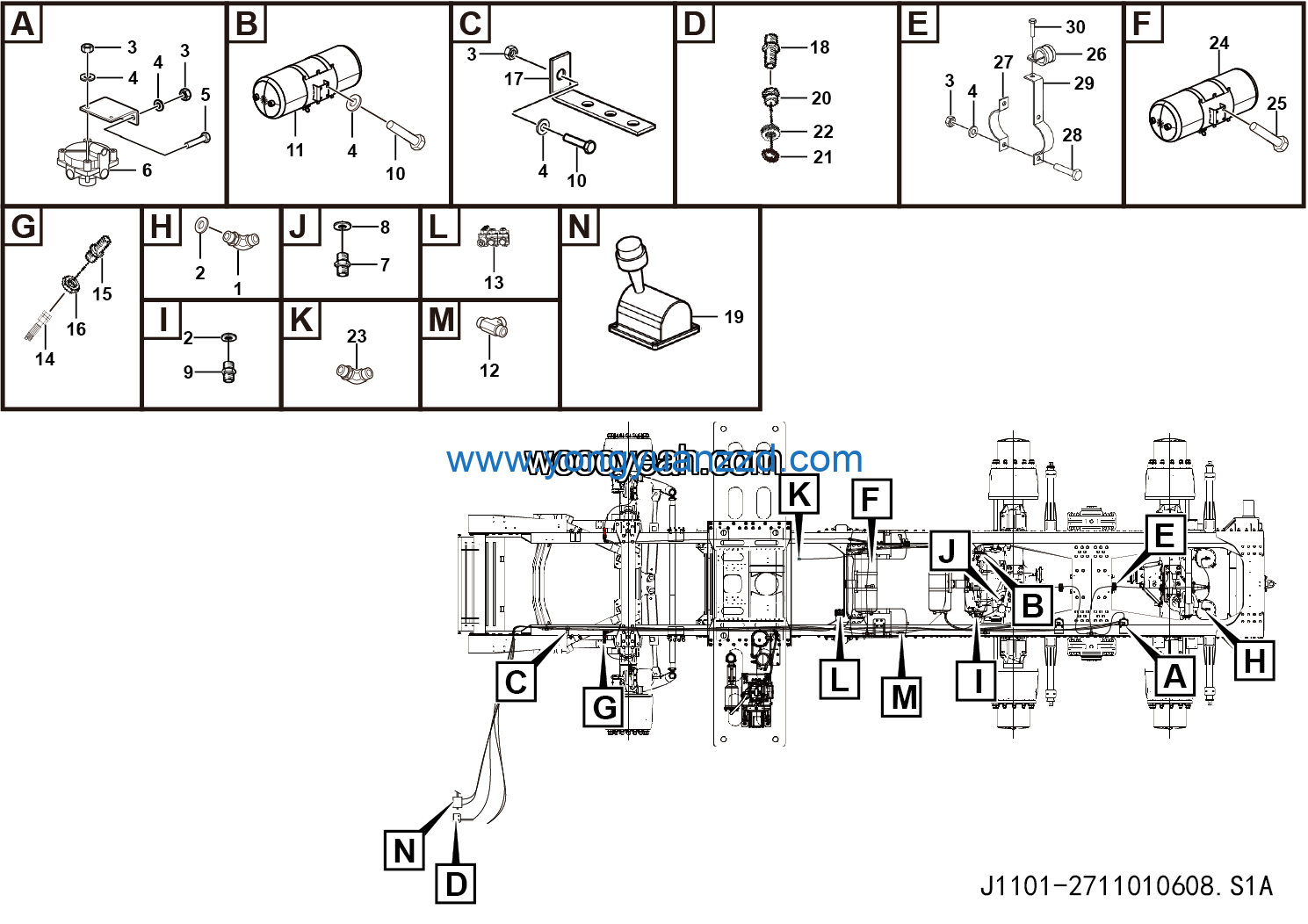

LGMG Off-Highway Dump Truck 2022 – Parking brake assy – J1101-2711010608.S1A
Category: 2022 > Off-Highway Dump Truck > MTE106 > C106HE0A0A001
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 6 |
| 2 | Gas tube installation assembly | 27100117111 | 1 |
| 3 | T-connector M14-M12-M14 | 27110101341 | 1 |
| 4 | Module installation assembly | 27110106011 | 1 |
| 5 | Air pipe gpu-13-i-880-sg | 27100107441 | 2 |
| 6 | Partition connector body L12 NG12 | 4120000257 | 2 |
| 7 | Nut M18 | 4120000230 | 4 |
| 8 | Bracket 1 | 27100103561 | 2 |
| 9 | connector | 27110101371 | 1 |
| 10 | Hand brake valve | 4120000134 | 1 |
| 11 | M16-M18 rectangular connector | 27100100641 | 2 |
| 12 | Nut seat NG8 | 4120000194 | 2 |
| 13 | Clip spring NG8 | 4120000196 | 2 |
| 14 | Elastic element NG8 | 4120000197 | 2 |
| 15 | Combination joint LGB143-01205 | 4041010126 | 1 |
| 16 | Module installation assembly | 27100117081 | 1 |
| 17 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 4 |
| 18 | CLAMP | 27110102381 | 4 |
| 19 | Bracket 2 | 27100108201 | 4 |
| 20 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 8 |
| 21 | Support | 27100108931 | 4 |
| 22 | Washer JB982-16 | 4015000141 | 6 |
| 23 | Bolt GB5783-M10*45EpZn-8.8 | 4011000514 | 4 |
| 24 | Nut GB6170-M10EpZn-8 | 4013000007 | 16 |
| 25 | Washer GB97.1-10EpZn-300HV | 4015000162 | 20 |
| 26 | Bolt GB5782-M10*50EpZn-8.8 | 4011000048 | 2 |
| 27 | Relay valve installation assembly | 27100117061 | 1 |
| 28 | Joint M12-M12 | 27110101331 | 2 |
| 29 | Washer JB982-12 | 4015000327 | 2 |
| 30 | CONNECTOR | 27100100661 | 4 |
