LGMG Off-Highway Dump Truck 2022 – Rear thrust rod installation assy – G1201-2712011732
Category: 2022 > Off-Highway Dump Truck > CMT66 > C0660W3E0A101

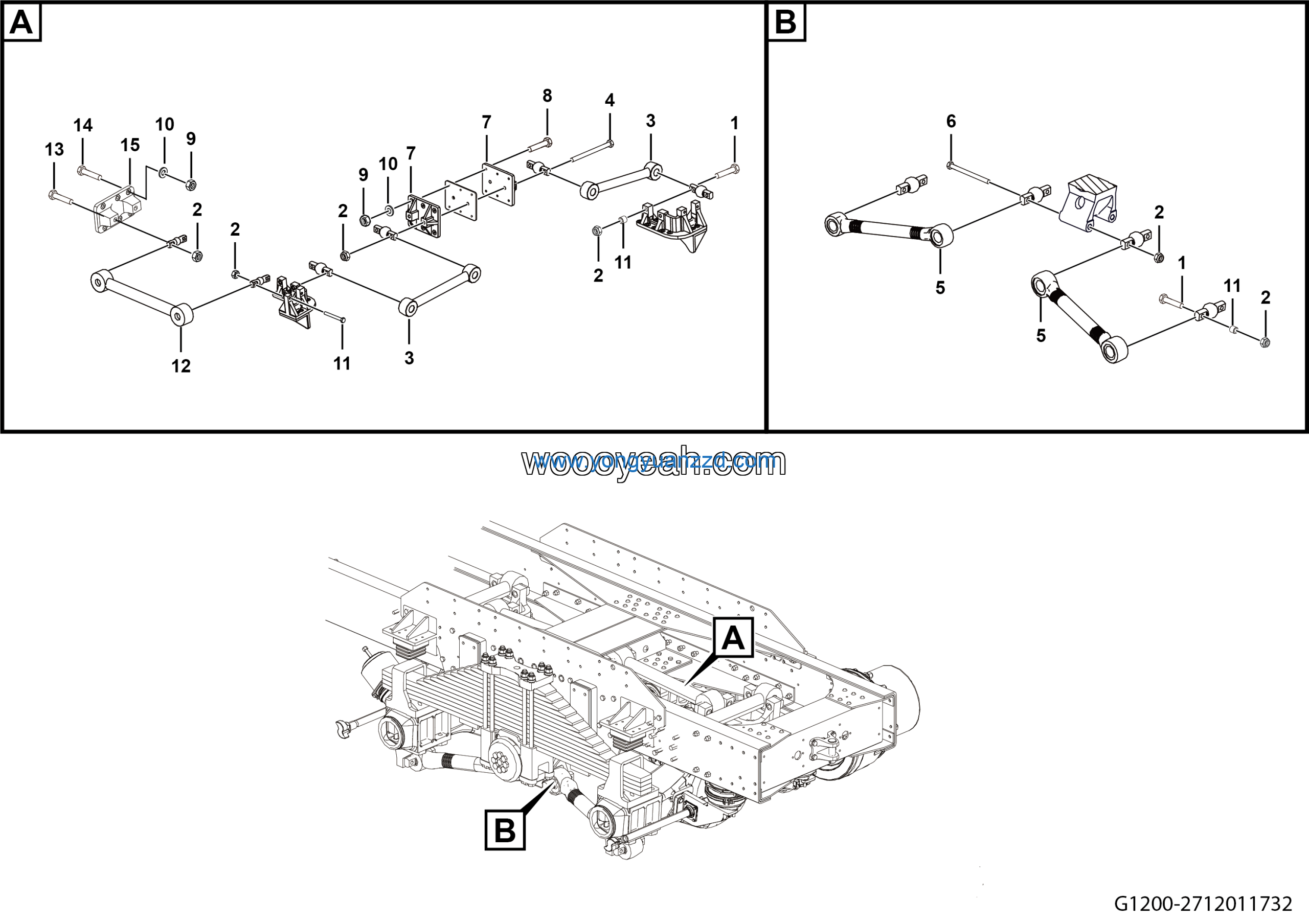

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB1230-16EpZn-45 | 4015000001 | 20 |
| 2 | Sleeve | 27120117401 | 20 |
| 3 | Transverse thrust rod assy | 4110002006 | 2 |
| 4 | Bolt GB5782-M24*245flZnyc-12.9-480 | 4011010694 | 4 |
| 5 | Bolt GB5782-M16*80flZnyc-12.9-480 | 4011010614 | 12 |
| 6 | Seat | 27120116991 | 2 |
| 7 | BOLT GB5782-M24*170flZnyc-12.9-480 | 4011010692 | 16 |
| 8 | Self-locking nut with the shoulder | 27120103611 | 26 |
| 9 | Upr thrust rod assy | 4110702193 | 2 |
| 10 | Bolt GB5782-M24*350flZnyc-12.9-480 | 4011010781 | 2 |
| 11 | Lower thrust rod assy | 4110002005 | 4 |
| 12 | BOLT GB5782-M24*255flZnyc-12.9-480 | 4011010511 | 4 |
| 13 | Seat | 27120117001 | 2 |
| 14 | Bolt GB5782-M16*110flZnyc-12.9-480 | 4011010564 | 8 |
| 15 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 20 |
