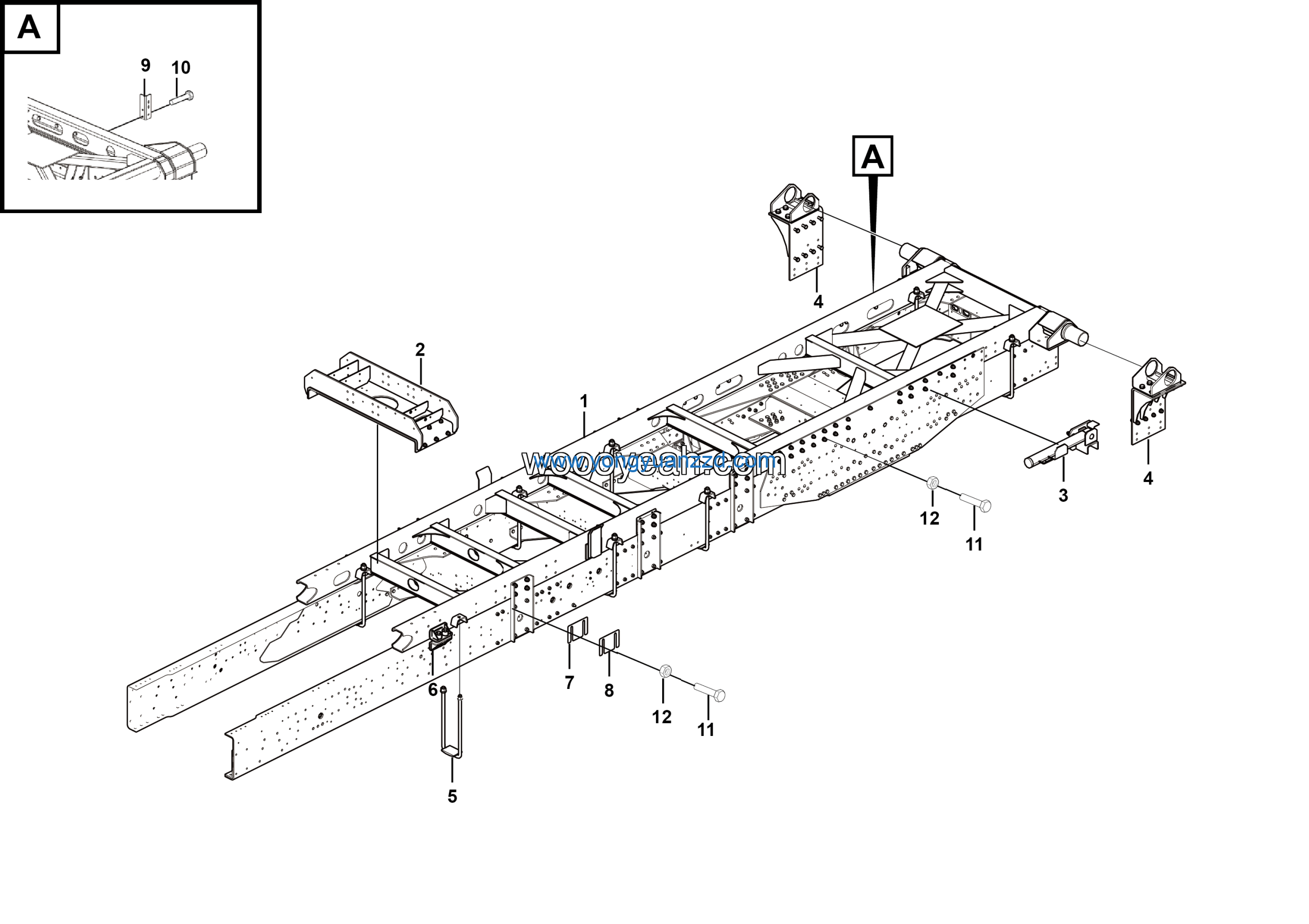

LGMG Off-Highway Dump Truck 2022 – Sub frame assy – I0400-2740010917
Category: 2022 > Off-Highway Dump Truck > MT96L > M096LW3A0M028
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M8*16EpZn-8.8 | 4011000102 | 2 |
| 2 | Bolt QC340.2-M18*1.5*50EpZn-10.9 | 4011011598 | 70 |
| 3 | Nut GB6177.2-RLM18*1.5EpZn-10 | 4013010546 | 70 |
| 4 | Auxiliary frame | 27400108701 | 1 |
| 5 | Lifting seat mounting | 27400109111 | 1 |
| 6 | Assembly | 27400108971 | 1 |
| 7 | Plate | 27400108771 | 1 |
| 8 | U-bolt mounting assy | 27400108351 | 4 |
| 9 | Plate | 27400108401 | 2 |
| 10 | Adjustment gasket | 27400102122 | 4 |
| 11 | Adjustment gasket | 27400102132 | 4 |
| 12 | PLATE | 27170128381 | 1 |
