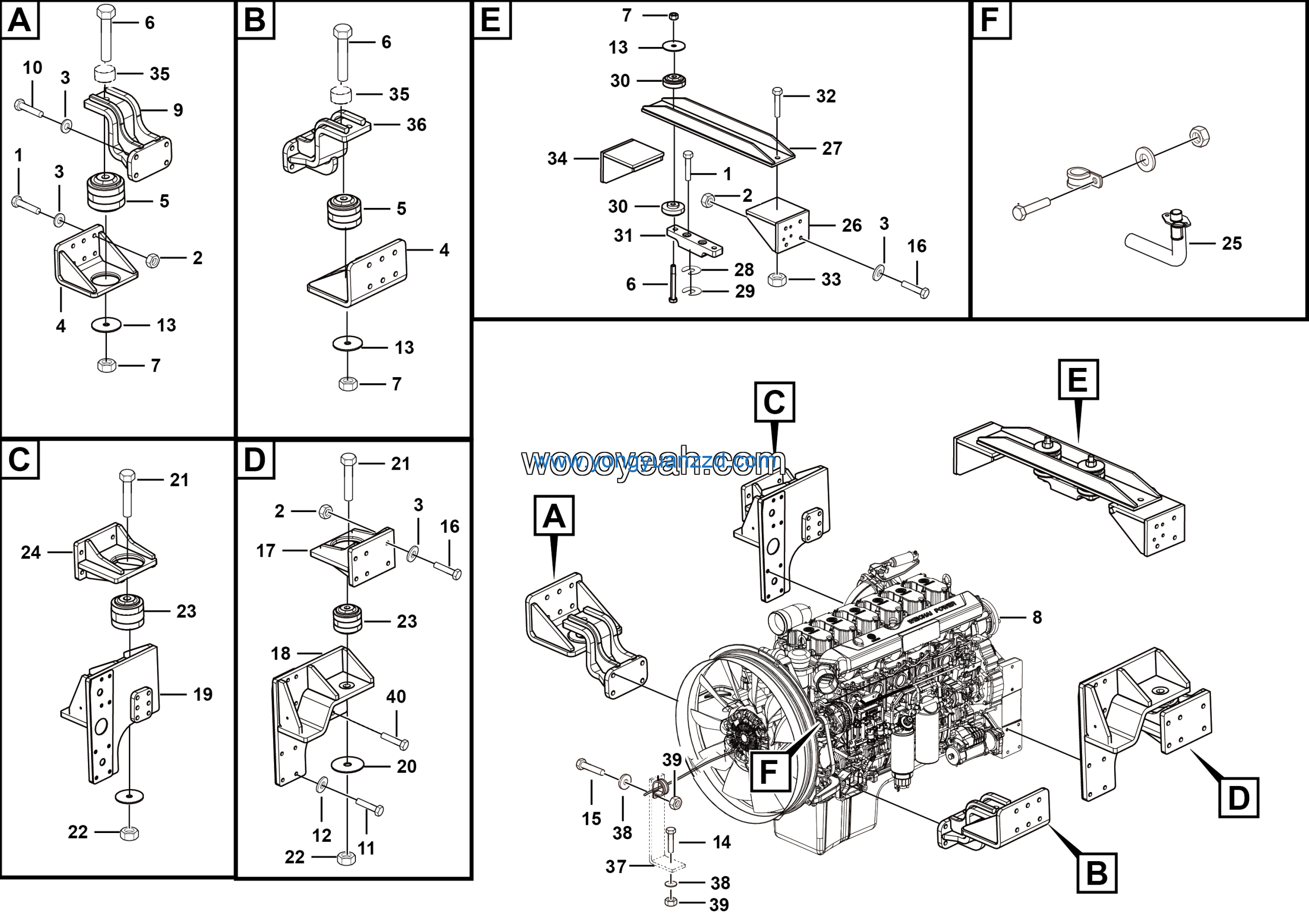

LGMG Off-Highway Dump Truck 2023 – Engine assy – A0103-2701012140.S1D
Category: 2023 > Off-Highway Dump Truck > CMT106 > C1060W3E0A012
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M16*45flZnyc-12.9-480 | 4011010621 | 8 |
| 2 | Bolt GB5786-M14*1.5*40flZnyc-12.9-480 | 4011010551 | 16 |
| 3 | No longer used | 4015010281 | 16 |
| 4 | Front rubber baes plate | 27010115971 | 4 |
| 5 | BOLT GB5782-M22*180flZnyc-12.9-480 | 4011011124 | 2 |
| 6 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 2 |
| 7 | Bolt GB5782-M16*65flZnyc-12.9-480 | 4011010556 | 14 |
| 8 | Left support plate | 27010120081 | 1 |
| 9 | REAR LEFT LEG | 27010121491 | 1 |
| 10 | RIGHT REAR LEG | 27010121501 | 1 |
| 11 | Bolt GB5782-M16*70flZnyc-12.9-480 | 4011010615 | 15 |
| 12 | Rear rubber baes plate | 27010116141 | 2 |
| 13 | Bolt GB5782-M27*185flZnyc-12.9-480 | 4011010397 | 2 |
| 14 | Hexangular self-locking nut with the shoulder M27 | 27120103881 | 2 |
| 15 | RR suspension shock absorber | 4110702314 | 4 |
| 16 | Right support plate | 27010120281 | 1 |
| 17 | SIGN | 27010118641 | 1 |
| 18 | Right seat | 27010121591 | 1 |
| 19 | RIGHT PLATE | 27010118551 | 1 |
| 20 | Plate | 27010111882 | 3 |
| 21 | Plate | 27010111872 | 3 |
| 22 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 17 |
| 23 | Auxiliary support shock absorber | 4110702315 | 4 |
| 24 | SIGN | 27010117431 | 1 |
| 25 | Bolt GB5782-M20*60flZnyc-10.9-480 | 4011010893 | 2 |
| 26 | Nut GB6185.1-M20flZnyc-12-480 | 4013010256 | 2 |
| 27 | Left seat | 27010121551 | 1 |
| 28 | Bomp | 27010111571 | 2 |
| 29 | RIGHT FRONT LEG | 27010121451 | 1 |
| 30 | Plate | 27010113352 | 1 |
| 31 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 32 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 2 |
| 33 | Washer GB97.1-16flZnyc-300HV-480 | 4015010287 | 46 |
| 34 | Bolt GB5782-M16*65flZnyc-12.9-480 | 4011010556 | 9 |
| 35 | PLATE | 27010118351 | 2 |
| 36 | FR mounted shock absorber | 4110702313 | 4 |
| 37 | Bolt GB5782-M22*180flZnyc-12.9-480 | 4011010793 | 2 |
| 38 | Nut GB6185.1-M22flZnyc-12-480 | 4013010282 | 6 |
| 39 | Engine assy WP13G530E310AT | 4110705051 | 1 |
| 40 | RIGHT LEG | 27010121461 | 1 |
