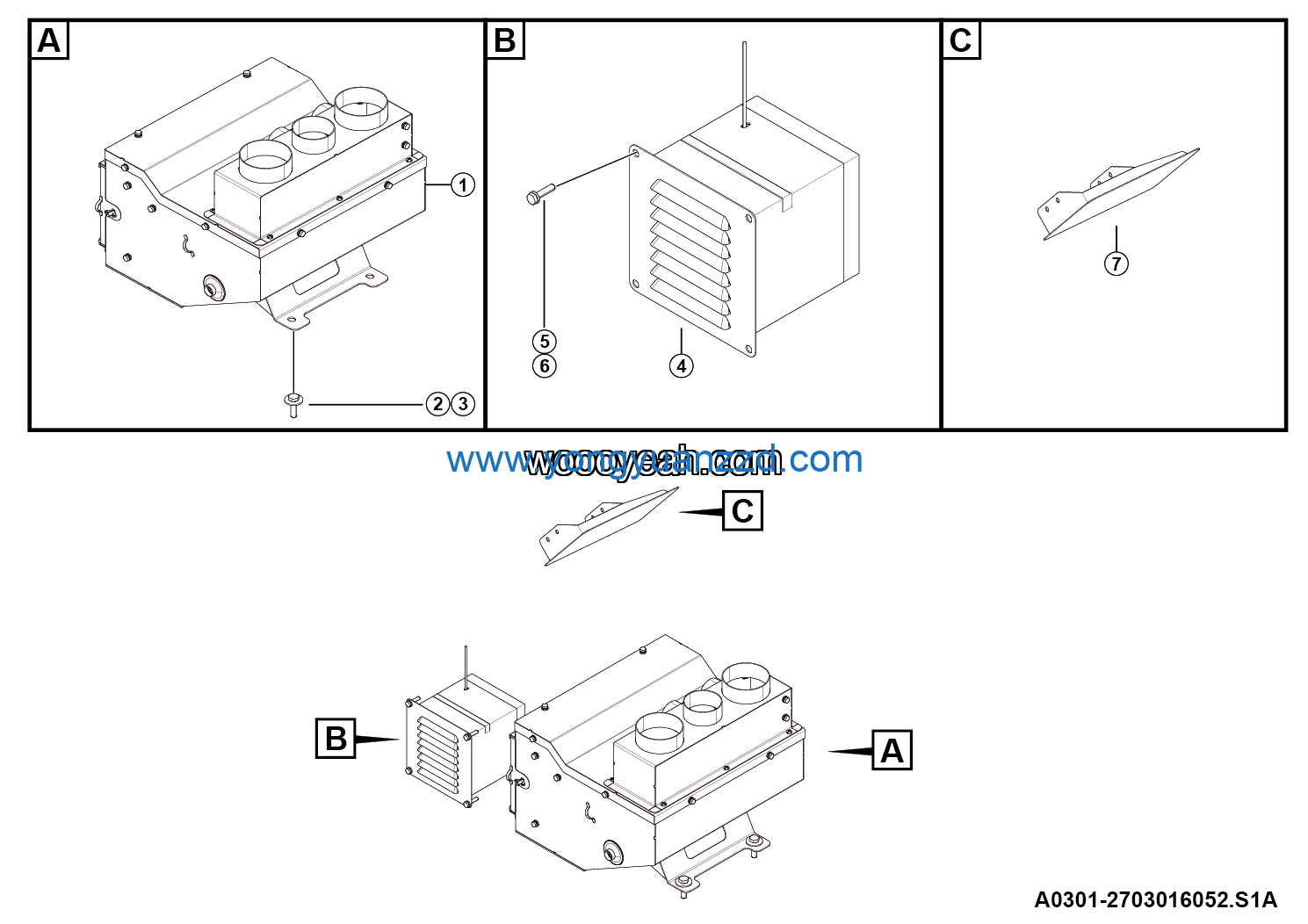

LGMG Off-Highway Dump Truck 2023 – Evaporator assy – A0301-2703016052.S1A
Category: 2023 > Off-Highway Dump Truck > EL100 > R1260Y3A0A601
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Evaporator assy PWM control | 4190708440 | 1 |
| 2 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 4 |
| 3 | Washer GB96.1-10EpZn-300HV | 4015000197 | 4 |
| 4 | Fresh air control component PSKT105A-002 | 4190708473 | 1 |
| 5 | Bolt GB5783-M6*25EpZn-8.8 | 4011000276 | 4 |
| 6 | Washer GB97.1-6EpZn-300HV | 4015000207 | 4 |
| 7 | Trim panel | 4190002565 | 1 |
