LGMG Off-Highway Dump Truck 2023 – SYSTEM – K2001-2720014585
Category: 2023 > Off-Highway Dump Truck > CMS50 > CS500W3E0A008

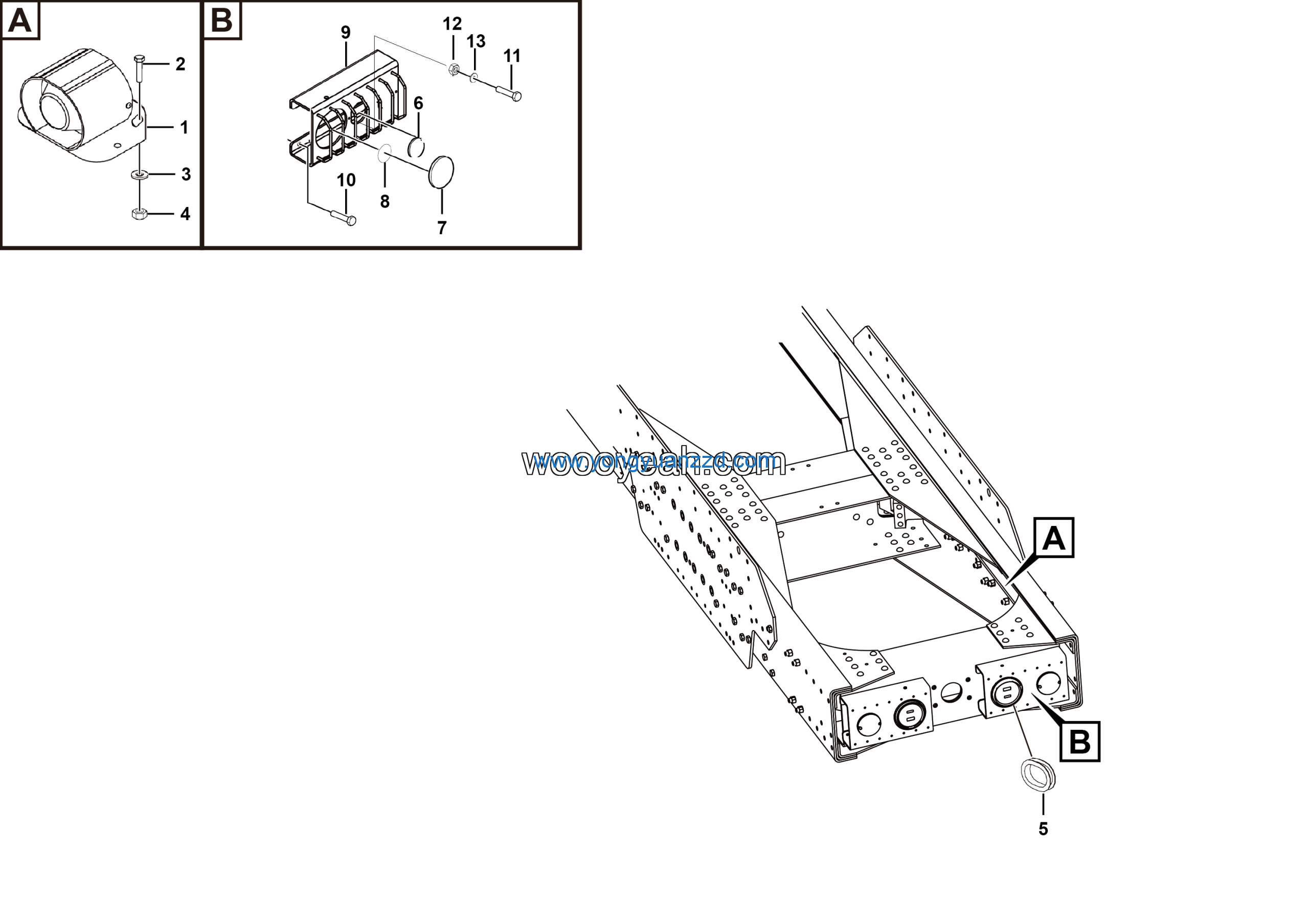

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 8 |
| 2 | BOLT GB5783-M4*25EpZn-8.8 | 4011010146 | 4 |
| 3 | Nut GB6170-M4EpZn-8 | 4013000025 | 4 |
| 4 | Washer GB97.1-4EpZn-300HV | 4015000135 | 4 |
| 5 | Reverse buzzer DDB101-LG | 4130000294 | 1 |
| 6 | Bolt GB5783-M8*35EpZn-8.8 | 4011000195 | 2 |
| 7 | Washer GB97.1-8EpZn-300HV | 4015000072 | 10 |
| 8 | Nut GB6170-M8EpZn-8 | 4013000033 | 10 |
| 9 | Guard | 27140105031 | 2 |
| 10 | Brake & turn signal lamp STTD-40 | 4130001149 | 2 |
| 11 | White lamp work lamp WK-005 | 4130001150 | 2 |
| 12 | Rubber insert | 27200107141 | 2 |
| 13 | Frame | 27200107111 | 2 |
