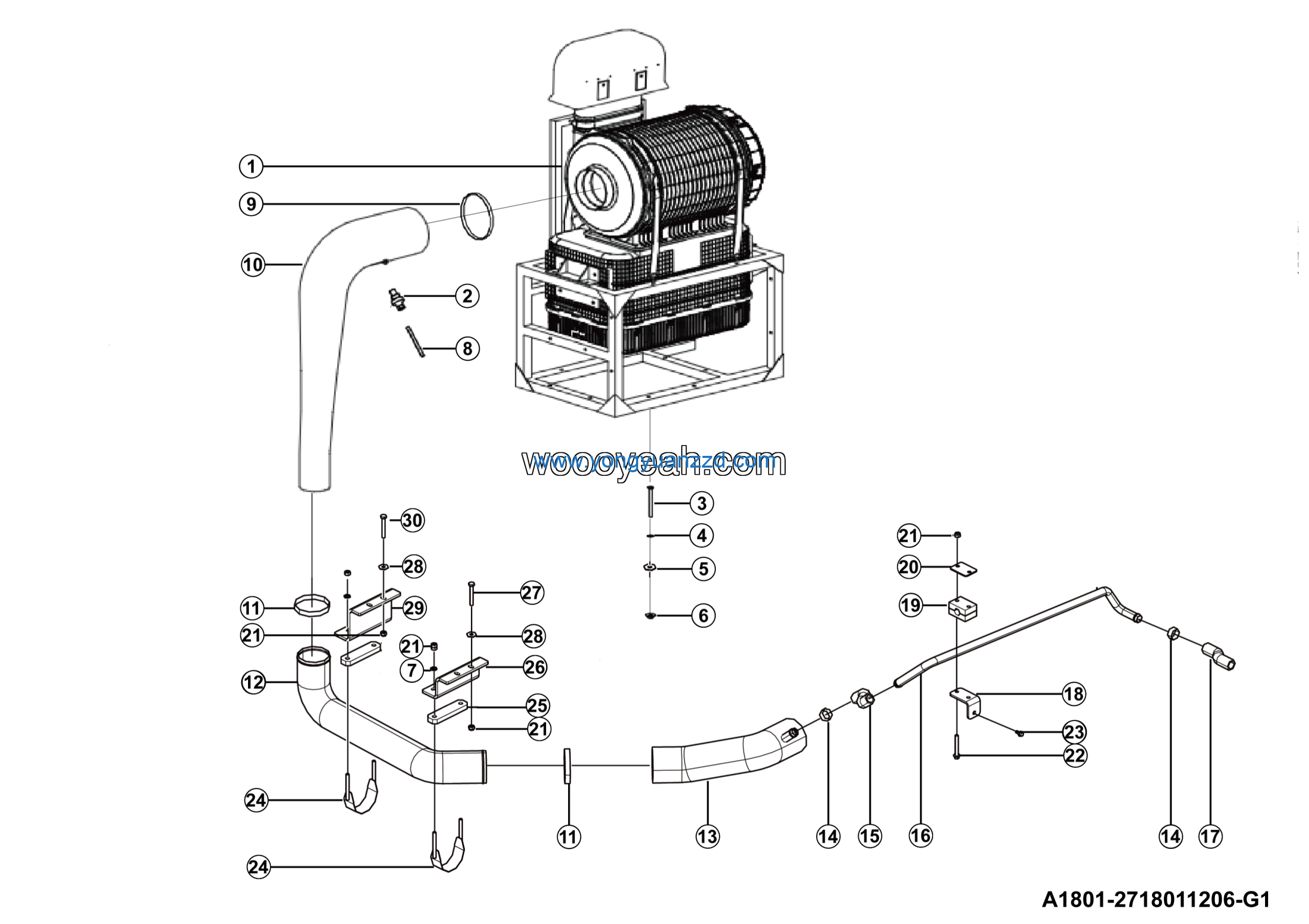

LGMG Off-Highway Dump Truck 2024 – Air filter assy – A1801-2718011206-G1
Category: 2024 > Off-Highway Dump Truck > MT106H > M106HW3A0M338
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Air filter hose 192*6 | 27180112071 | 1 |
| 2 | Butterfly spring clamp φ93-φ118 | 4190708166 | 3 |
| 3 | Connecting steel pipe 100*1.5*835 | 27180111162 | 1 |
| 4 | Engine air intake pipe 110*5*480 | 27180111172 | 1 |
| 5 | Butterfly spring clamp φ25-φ45 | 4190708159 | 4 |
| 6 | Connect pipe35*5*154 | 27180111211 | 1 |
| 7 | Pipe | 27180110931 | 1 |
| 8 | Pipe | 27180110911 | 1 |
| 9 | Steel pipe supt | 27030131172 | 2 |
| 10 | Rubber support | 27030122161 | 4 |
| 11 | Desert air filter assy 1109010-3560SM | 4190707350 | 1 |
| 12 | Plate | 27030122151 | 2 |
| 13 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 12 |
| 14 | BOLT GB16674-M10*70EpZn-8.8 | 4011000476 | 4 |
| 15 | Bolt GB16674.1-M8*16flZnyc-8.8-480 | 4011010964 | 2 |
| 16 | Exhaust pipe strap | 27240102332 | 2 |
| 17 | Plate 150*40*15 | 27180111111 | 2 |
| 18 | Air filter bracket 180*110*80 | 27180111181 | 1 |
| 19 | Bolt GB5782-M10*70EpZn-8.8 | 4011000051 | 2 |
| 20 | Washer GB96.1-10EpZn-300HV | 4015000197 | 8 |
| 21 | Air filter bracket 180*120*110 | 27180111261 | 1 |
| 22 | Vacuum level alarm | 4110001427 | 1 |
| 23 | Bolt GB5782-M10*35EpZn-8.8 | 4011010164 | 2 |
| 24 | Bolt GB5782-M12*110EpZn-8.8 | 4011000262 | 8 |
| 25 | Washer GB97.1-12EpZn-300HV | 4015000168 | 8 |
| 26 | Washer GB96.1-12EpZn-300HV | 4015000186 | 8 |
| 27 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 8 |
| 28 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 29 | WIRE | 2720010762-001 | 1 |
| 30 | Butterfly spring clamp φ184-φ206 | 4190708173 | 1 |
