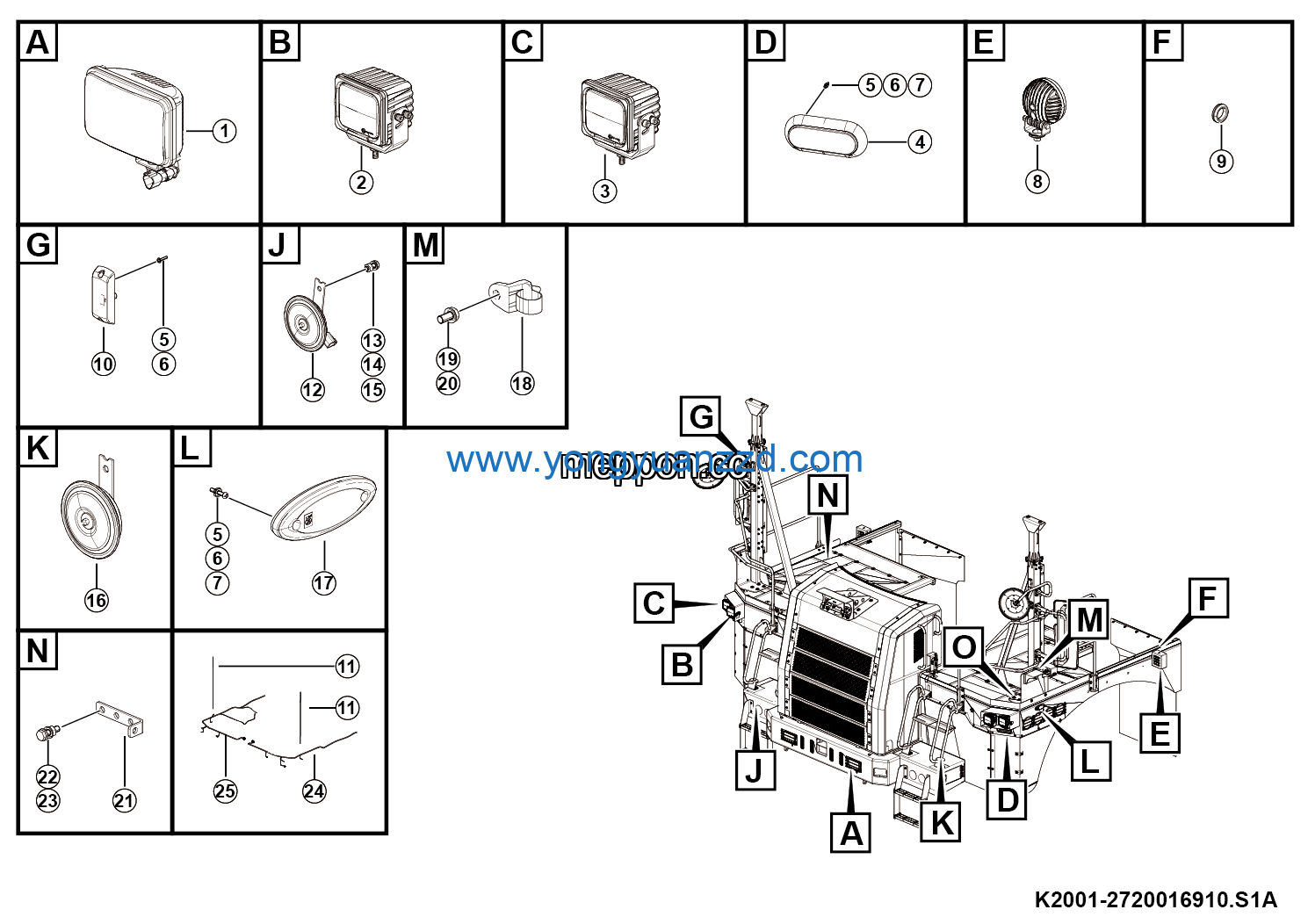

LGMG Off-Highway Dump Truck 2024 – Elec module for coverings – K2001-2720016910.S1A
Category: 2024 > Off-Highway Dump Truck > RTH136 > R1360Y3A0A305
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | SMG-011 Side marker lamp 3112040324 | 4130001148 | 2 |
| 2 | Outline light harness 1300 | 27200158151 | 2 |
| 3 | Monophonic disc woofer | 4130000906 | 1 |
| 4 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 2 |
| 5 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 6 | Nut GB6170-M8EpZn-8 | 4013000033 | 2 |
| 7 | Monophonic disc wooFer（treble） | 4130000907 | 1 |
| 8 | Side steering lamp 43-3001A | 4130000343 | 2 |
| 9 | Cable tie 14400342 | 4130703098 | 14 |
| 10 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 12 |
| 11 | LED Fog lamp SM6053（three pin plug） | 4130000921 | 2 |
| 12 | Washer GB97.1-10EpZn-300HV | 4015000162 | 15 |
| 13 | Holder | 27200141551 | 1 |
| 14 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 1 |
| 15 | Nut GB6170-M10EpZn-8 | 4013000007 | 1 |
| 16 | Lh platform harness | 27200169111 | 1 |
| 17 | Rh platform harness | 27200169121 | 1 |
| 18 | Spotlamp work lamp WK-55HL（3312040131） | 4130001153 | 2 |
| 19 | Floodlamp work lamp WK-55HL（3312040210） | 4130001152 | 2 |
| 20 | Third generation turn signal DI-621 | 4130705210 | 2 |
| 21 | Screw GB818-M4*20flZnyc-4.8-480 | 4014010121 | 16 |
| 22 | Washer GB97.1-4EpZn-300HV | 4015000135 | 16 |
| 23 | Nut GB6172.1-M4EpZn-05 | 4013000047 | 16 |
| 24 | White lamp work lamp WK-005 | 4130001150 | 2 |
| 25 | Sheath LGB313-6*32 | 4043001111 | 7 |
